POS
|
|

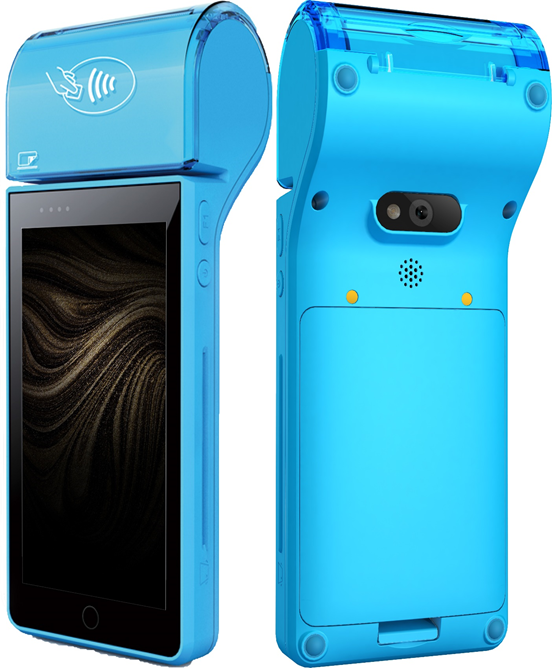

PO - 003
|
|
Operating System : Android 7.0
Processor : AP: 64-bit Quad-core Corex A53 1.3 Ghz
SP: 32-bit RISC Core (ARMv7-M) 72 MHz
Memory : 1 GB RAM + 8 GB eMMC; TF Card up to 128 GB
Display : 5.0 inch HD 1280*720 IPS Display , Capacitive Multi-touch
Physical Touch : 1 * On/Off & 1 * F1(Volume+Default)
Magnetic Card Reader : Track 1/2/3, Bi-directional;ISO7810/7811/7812 compliant
Smart IC Card Reader : Supports 3V/5V IC card
EMV/PBOC/ISO7816 compliant
Contactless Card Reader : Supports Mifare Card & ISO 14443 A/B
Visa Paywave & MasterCard Paypass
Indicators : Blue/Yellow/Green/Red
Thermal Printer : Paper Roll: 58*30mm
Camera : 2 MP Rear-facing, supports 1D&2D code; (5 MP Rear-facing optional)
Audio : 1*speaker & 1*microphone
Communication : Mobile network: 4G/3G/2G; Wi-Fi: 2.4G/5G (Supports Hotspot);
BT: BT 4.2 (Supports BLE)
Location : GPS/GLONASS/BEIDOU
Video : AVI, rm, rmvb, MKV, WMV, MOV, MP4, MPEG, MPG, FLV.
Support HD 1080P/2160P video playing.
Accessories : Adapter 1PC, User manual 1PC
Peripheral Port : 1 * Micro USB Supports OTG and Charging
Card Slot : 1 SIM +2 PASM / 2 SIM +1 PASM (optional)
Battery : 3.8V 4000mAh Rechargable Li-on Battery
Adapter : 5V DC / 2A
Cradle (optional) : charge only
|
|
| |
|
|

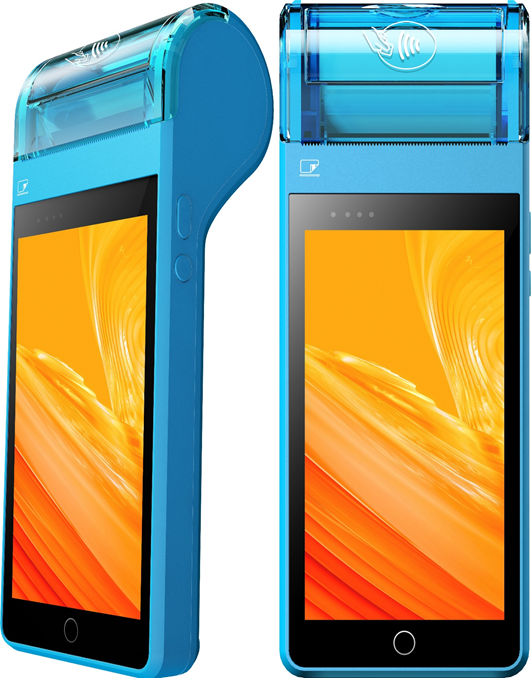

PO - 004
|
Android POS Terminal
|
Operation System : Android 7.0
Processor : 64-bit Quad-core Cortex A53 1.3 GHz
Memory : 1GB RAM + 8GB eMMC; TF Card up to 128GB
Display : 5.0 inch HD 1280*720 IPS Display
Capacitive Multi-touchscreen
Physical Key : 1*On/Off and 1*F 1(Volume+ default)
Contactless Card Reader : Supports Mifare Card & ISO14443 A/B
Indicator : Green
Thermal Printer : Paper Roll: 58”40mm
Camera : 2 MP Rear-facing, supports 1D&2D code; (5 MP Rear-facing optional)
Audio : 1* speaker & 1* microphone
Communication : Mobile Network: 4G/3G/2G
Wi-Fi: 2.4G/5G (Supports Hotspot)
BT: BT 4.2 (Supports BLE)
Location : GPS/GLONASS/BEIDOU
Peripheral Port : 1 * Micro USB Supports OTG and Charging
Card Slots : 1 SIM+2 PASM / 2 SIM+1 PASM (optional)
Battery : 3.8V 4000mAh Rechargeable Li-ion Battery
Adapter : 5V DC/2A |
|
| |
|
|
|

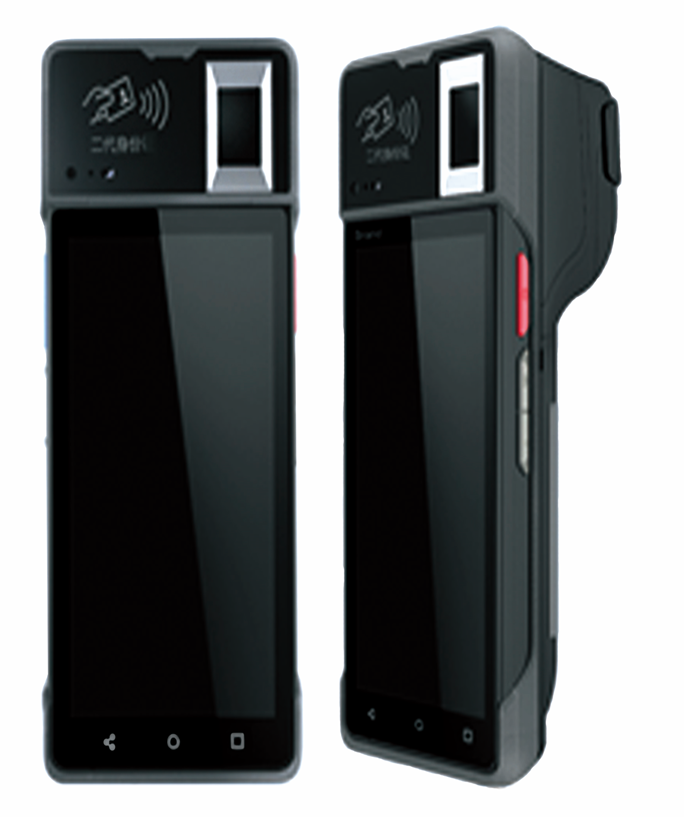

PO - 006
|
Android POS Terminal
|
Operation System : Android 7.1/8.1
Processor : ARM Cortex-A53 octal core 64-bit
Memory : 2GB-LPDDR3 + 16GB-eMMC
Display resolution : 5 inch,720x1080Pixels or 1920x1080Pixels
CTP(Multi point)
Physical touch : Press on 2~3s power on/off
Contactless Card : ISO 14443 Type A/B
Thermal Printer : Paper roll: 58*35mm
Camera : front CAM:5.0MP
rear CAM:13MP, with flash
Audio : 1*microphone, 1*earphone, 1*speaker
Communication : "Mobile Network: 4G/3G/2G
BT2.1+EDR/3.0/4.1/4.2 LE
Location : GPS/GLONASS/BeiDou
Peripheral Port : Support distance sensor& light sensor
Card Slots : 2 SIM Slot
Battery : 3.7V/3500mAh Li-ion or 3.7V/7000mAh
Adapter : 5V/2.4A |
|
| |
|
|

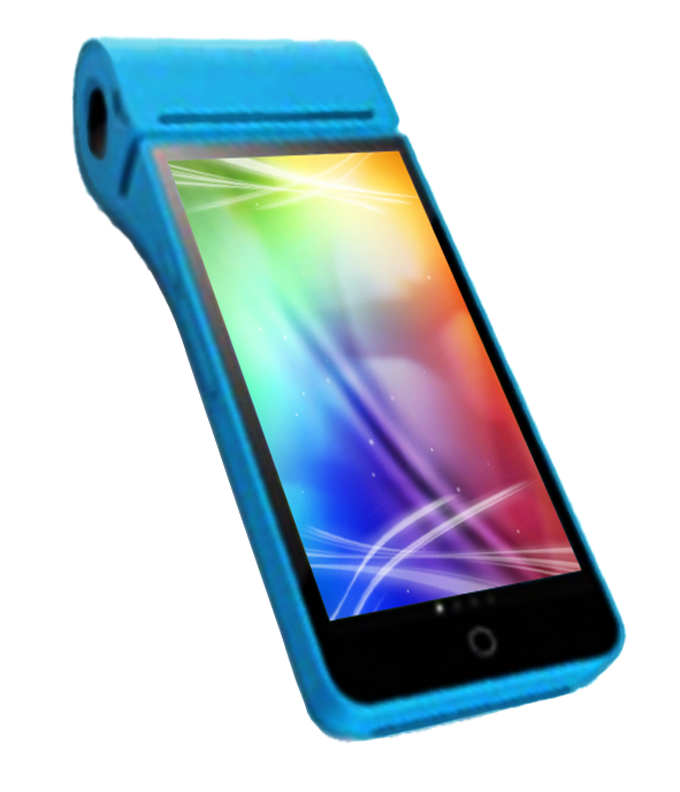

PO - 007
|
Android POS Terminal
|
Operating System : Android 5.1
Processor : Cortex A7 Quad Core , ARM Cortex-M3
Display Resolution : 5.5 inch,1280x720Pixels
Capacitor Touch Panel(Multi point)
Physical touch : Press on 2~3s power on/off
Magnetic Stripe Reader : Track 1/2/3, bi-directional
Smart IC card reader : ISO 7816 & PBOC/EMV compliant
Contactless Card Reader : ISO 14443 Type A/B & ISO 18092
EMV L1 & Pay Pass & Pay Wave
Indicators : Charger On (Red)/Charger Finished(Green)
Thermal Printer : Paper roll: 58*35mm
Camera : 8.0MP Rear-facing, don't support 1D&2D code
Audio : 1*speaker&1*microphone
Communication : Mobile Network: 4G/3G/2G
BT: BT 4.1 (supports BLE)
Location : GPS/GNOLASS/BeiDou
Peripheral Port : Support G-sensor, light sensor, micro-USB
Card Slot : 1 SIM Slot/2 PSAM Slots
Battery : 7.4V/2200mAh Li-ion Battery
Backup Battery : 7.4V/2200mAh Li-ion
Adapter : 5V DC/ 2A |
|
| |
|
|

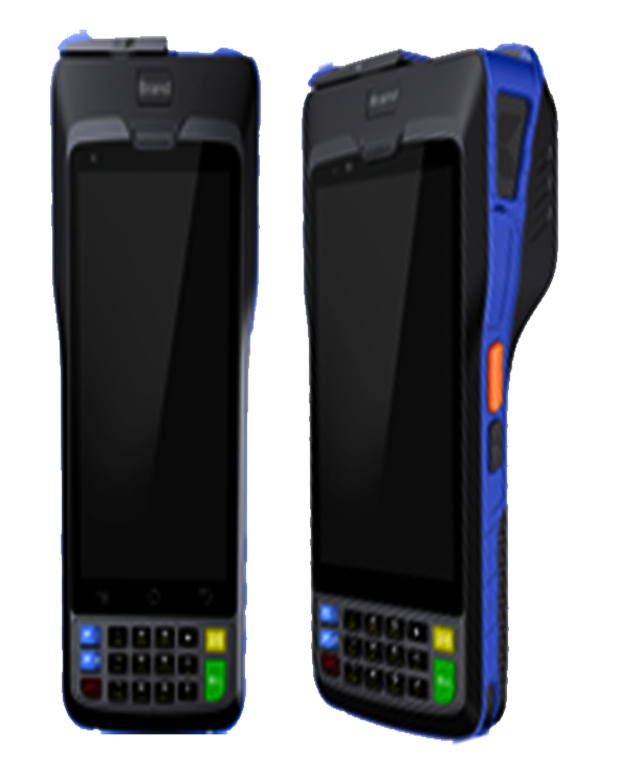

PO - 008
|
Android POS Terminal
|
Operating System : Android 5.1
Processor : "Cortex A7 Quad Core , ARM Cortex-M3"
Display Resolution : "4.5 inch,480x854Pixels
Capacitor Touch Panel(Multi point)"
Physical touch : Press on 2~3s power on/off
Magnetic Stripe Reader : Track 1/2/3, bi-directional
Smart IC card reader : ISO 7816 & PBOC/EMV compliant
Contactless Card Reader : ISO 14443 Type A/B & ISO 18092
4 RF Indicator : Blue,Yellow,Green,Red
Thermal Printer : Paper roll: 58*40mm
Camera : 8.0MP Rear-facing, support 1D&2D code
Audio : 1*speaker&1*microphone
Communication : "Mobile Network: 4G/3G/2G
BT: BT 5.0 (supports BLE)"
Location : GPS/GNOLASS/BeiDou
Peripheral Port : Support G-sensor, light sensor
Card Slot : 2 SIM Slot/ 3 PSAM Slots
Battery : 3.7V/4200mAh Li-ion
Backup battery : 3.0V/100mAh
Adapter : 5V DC/ 2A |
|
| |
|
|

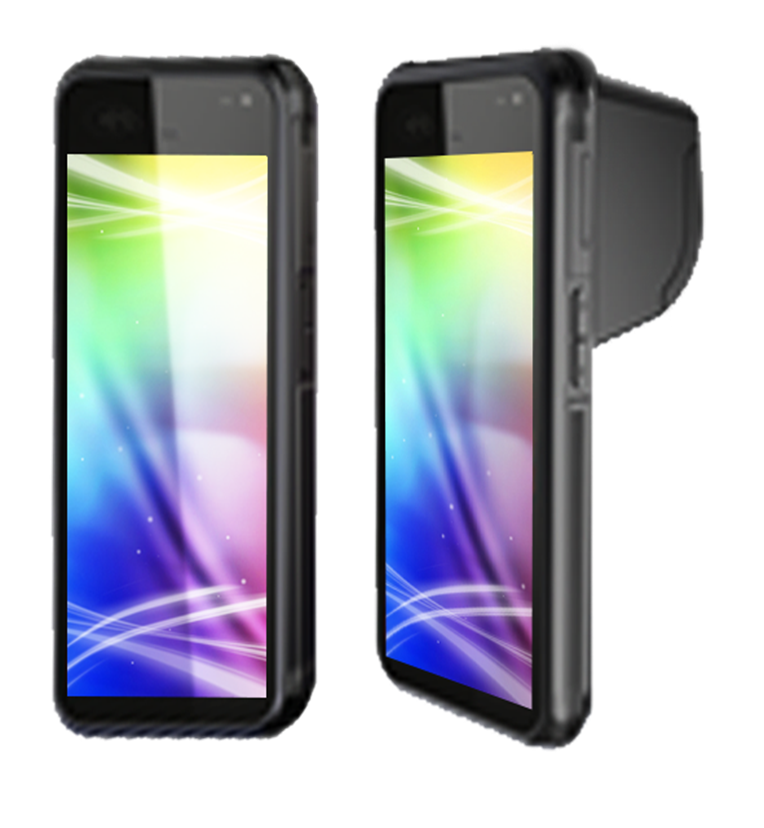

PO - 009
|
Android POS Terminal
|
Operating System : Android 7.1/8.1
Processor : ARM Cortex-A53
Display Resolution : "5.5inch ,720×1440 pixels
Capacitor Touch Panel(Multi point)"
Physical touch : Press on 3-5s power on/off
Contactless Card Reader : ISO 14443 Type A/B
Thermal Printer : Paper roll: 58*30mm
Camera : "5.0MP+13MP with flash, support 1D/2D code
(USB3.0 Type-c. printer is optional)"
Audio : 1*speaker&1*microphone&1*earphone
Communication : "Mobile Network: 4G/3G/2G
BT: BT2.1+EDR/3.0/4.1/4.2 LE"
Location : GPS/GLONASS/BeiDou
Peripheral Port : Support distance sensor& light sensor
Card Slot : Nano/ Micro SIM& Micro PSAM
Battery : 3.8V/6000mAh
Adapter : 5V DC/ 3A, support QC 3.0
|
|
| |
|
|

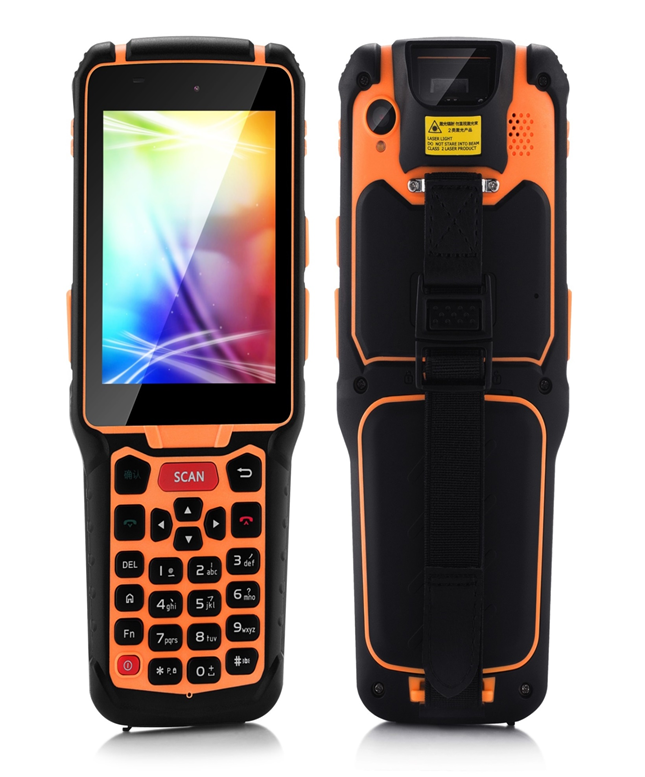

PO - 010
|
Android POS Terminal |
Operating System : Android 5.1
Processor : Qualcomm MSM8909 quad core 1.3G
Display Resolution : "3.5inch ,480X640 pixels
Capacitor Touch Panel(Multi point), Oleophpbic coating"
Contactless Card Reader : ISO14443A/B,ISO15693，NFC
Indicators : 3 colors
Camera : "8.0 rear camera with flash
(USB2.0 Type-C ,support OTG)"
Audio : 1*speaker&1*microphone&1*earphone
Communication : Mobile Network: 4G BT: 4.0
wifi&bluetooth : IEEE 802.11a/b/g/n ,4.0 BLE
Location : GPS
Peripheral Port : support G-sensor, ranger sensor, opto-sensor
Card Slot : Nano-sim/ tf card, RFID+2 PSAM slots
Battery : 3.8V ,4400mAh, replaceable battery
|
|
| |
|
|

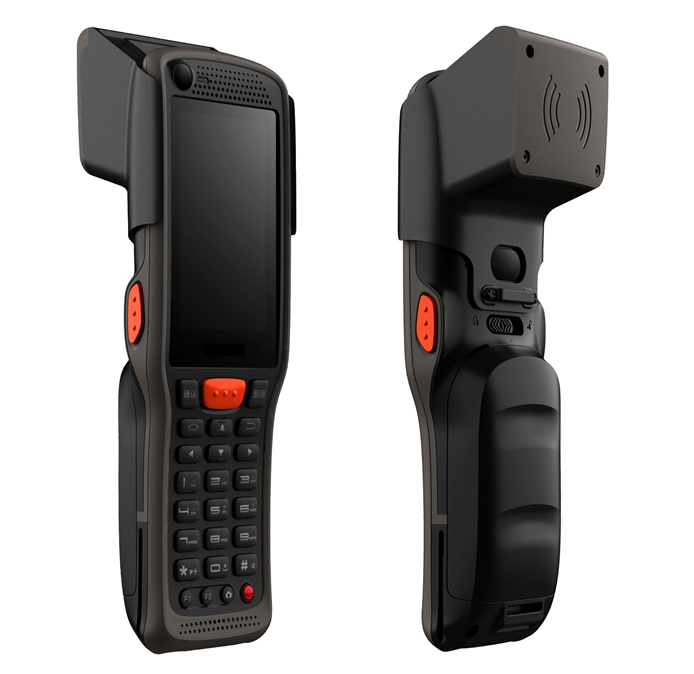

PO - 011
|
Android POS Terminal
|
Operating System : Android 5.1
Processor : Qualcomm MSM8909 quadcore 1.3G
Display Resolution : "3.1inch IPS screen,480*800pixels
Capacitor Touch Panel(Multi point), Oleophpbic coating"
Contactless Card Reader : ISO14443A/B,ISO15693，NFC
Indicators : 3 colors
Camera : "2.0+8MP, support 1D/2D code
(USB2.0 Type-C , support OTG )"
Audio : 1.5Wspeaker&1*microphone
Communication : "Mobile Network: 4G
BT: 4.0 (supportsBLE)"
Location : GPS/BeiDou
Card Slot : 2 nana-sim, 1*TF card
Battery : 3.8V, 5100mAh, replaceable battery
|
|
| |
|
|

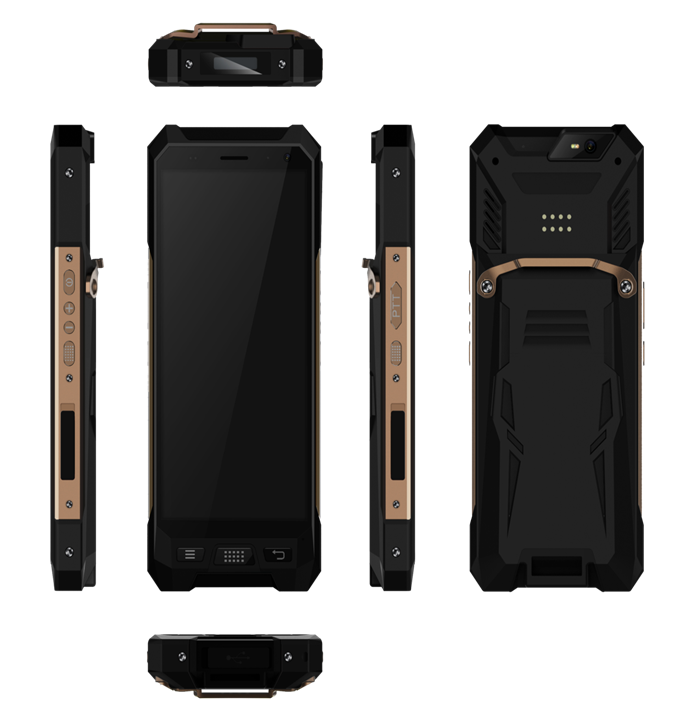

PO - 012
|
Android POS Terminal
|
Operating System : Android 7.1
Processor : Qualcomm MSM8953, 8 core, 2.0G
Display Resolution : 6.0inch IPS high resolution screen,
HD separate rate (720*1440pixels)
Contactless Card Reader : ISO14443A/B,ISO15693，NFC
Indicators : 3 colors
Camera : "Rear camera: 13 million pixels, support flash, autofocus.
Front-end camera: 5 million pixels
(USB2.0 Type-C ,support OTG)"
Audio : 1.5w speaker, microphone,
supports voice calling and MIC head noise reduction
Communication : "Mobile Network: 4G
BT: 4.0 BLE"
Wifi : IEEE 802.11a/b/g/n,Support dual-band 2.4 and 5G
Location : Support GPS and beidou positioning, accuracy within 10 meters
Peripheral Port : supports gravity sensor, distance sensor, light sensor, vibration motor
Card Slot : Two nano-sim cards and one TF card,the three choose two
Battery : 3.8V ，6000mAh、Non-replaceable
|
|
| |
|
|

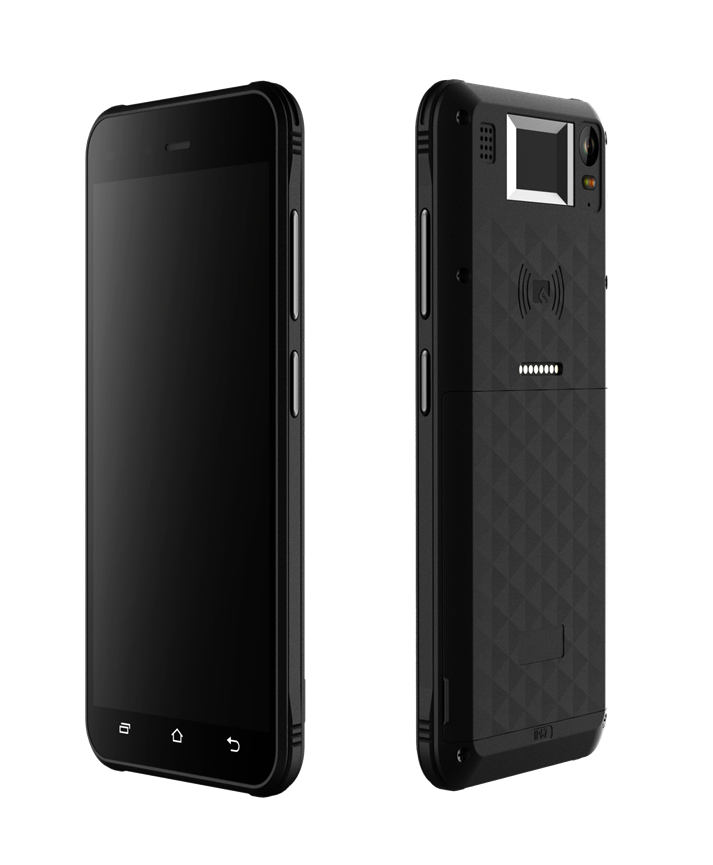

PO - 013
|
Android POS Terminal
|
Operating System : Android 5.1
Processor : Qualcomm, 8 core, MSM8939 1.5G
Display Resolution : 5.5inch IPS high resolution screen，
FHD separate rate(1920*1080 pixels)
Contactless Card Reader : ISO14443A/B,ISO15693
Indicators : 3 colors
Camera : "rear cam: 13millions pixels, autofocus, two LED flashs
front-end cam:200 millions pixels"
Audio : 1*speaker, 1*microphone, supports voice calling and MIC head noise reduction
Communication : "Mobile Network: 4G
BT: 4.0 BLE"
Wifi : IEEE 802.11a/b/g/n
Location : GPS,GLONASS,Beidou, supports APGS, accuracy within 10 meters
Peripheral Port : supports gravity sensor, distance sensor, light sensor, vibration motor
Card Slot : 2*nana SIM, 1*TF card
Battery : 3.8V ，4600mAh、Non-replaceable
|
|
| |
|
|

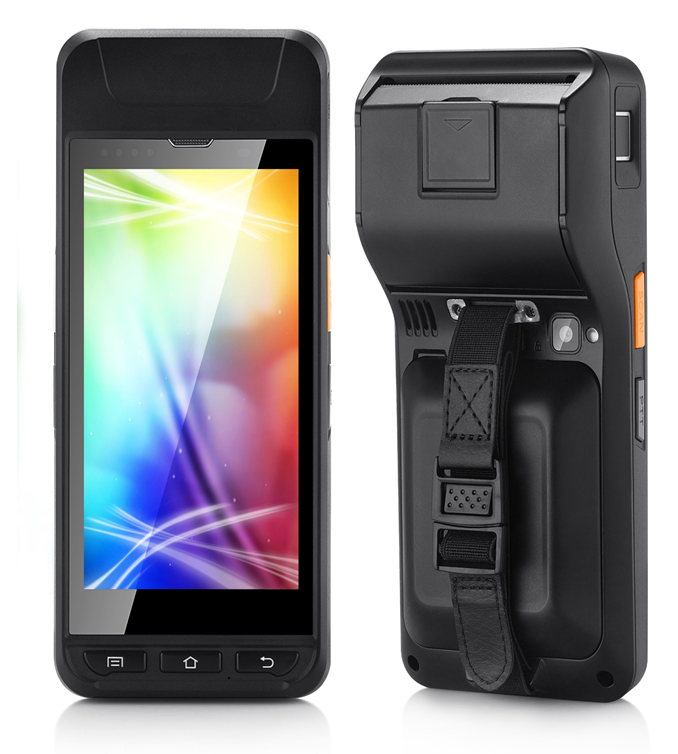

PO - 014
|
Android POS Terminal
|
Operating System : Android 5.1
Processor : Qualcomm MSM8909, quad core, 1.3G
Display Resolution : 5inch,IPS high resolution screen，
HD separate rate(720*1280 pixels)
Contactless Card Reader : ISO14443A/B,ISO15693，NFC
Indicators : 3 colors
Camera : "rear camera 8 million pixels, autofocus, with flash
(USB2.0 Type-C , supports OTG)"
Audio : 1*speaker, 1*microphone, supports voice calling and MIC head noise reduction
Communication : "Mobile Network: 4G ; BT: 4.0 BLE"
Wifi : IEEE 802.11a/b/g/n
Location : GPS,Beidou, accuracy within 10 meters
Peripheral Port : supports gravity sensor, distance sensor, light sensor, vibration motor
Card Slot : 2*nana SIM, 1*TF card, 2*PSAM
Battery : 3.8V ，5700mAh、Non-replaceable
|
|
| |
|
