All-in-One
|

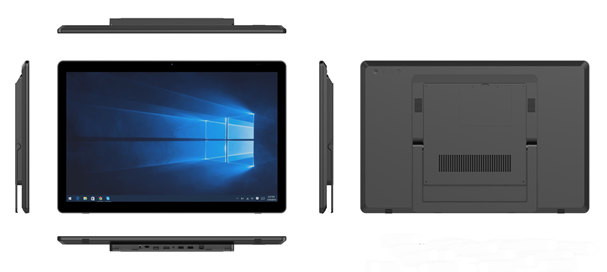

AIO1701 (17.3")  |
CPU:Intel Processor N3350/N3450/N4200/J3355/J3455/J4205
GPU:Intel HD Graphics
RAM:2GB/3GB/4GB/6GB
Storage:32GB/64GB
HDD:support (optional)
Camera:front 0.3/2.0MP
Speaker:2*2w built-in
WIFI:802.11ac
Bluetooth:V4.1
Memory card socket:Support SDHC/SDXC
I/O:USB3.0*3, RJ45, HDMI*1, Headphone Jack*1, DC Jack*1, Micphone Jack*2
Resolution:1600 x 900
Operating System:Windows 10 home
Battery:2500 mAh/7.4V
Touch:Support
|

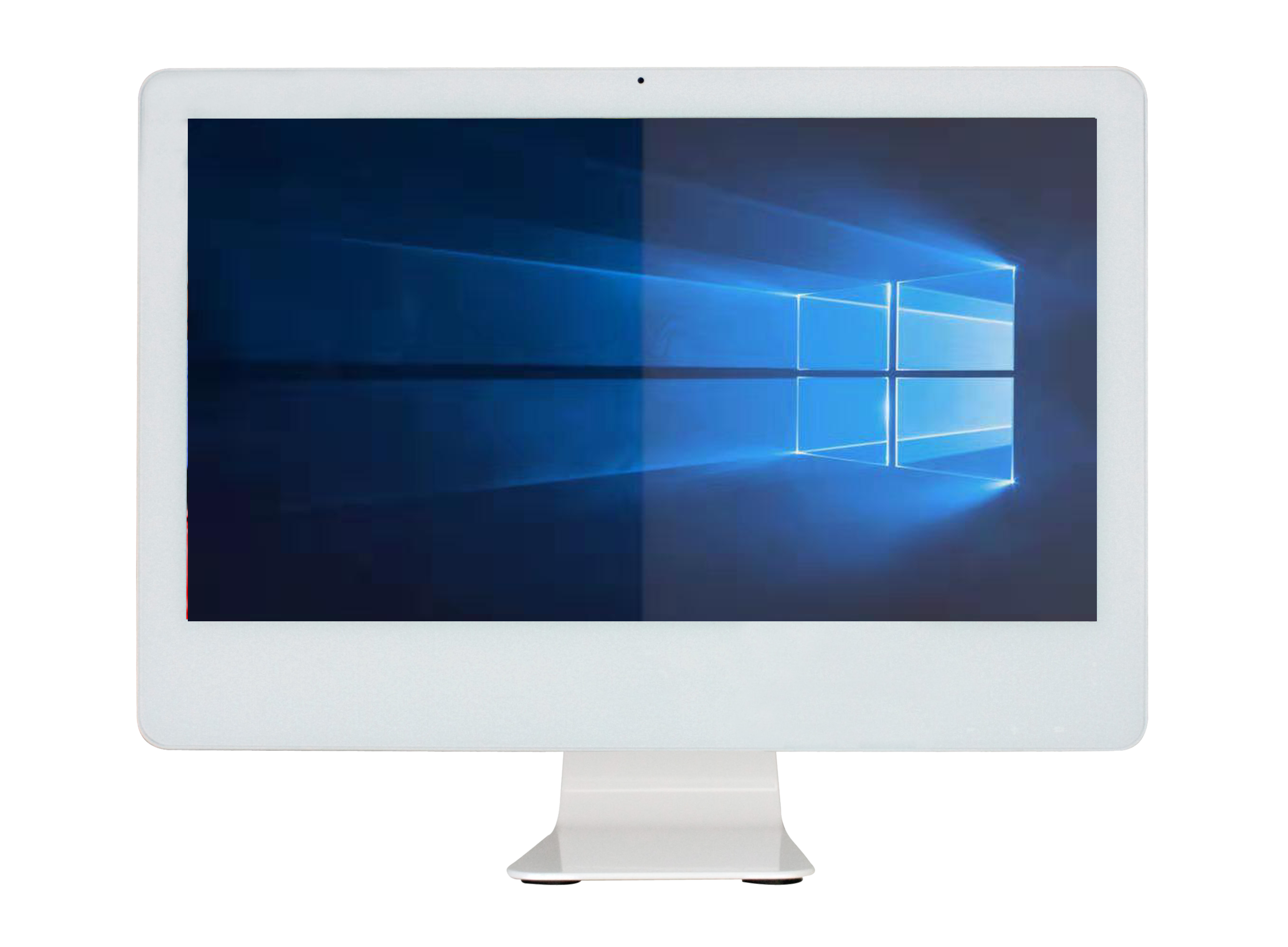

AIO1801 (18.5")  |
CPU:Core™i3 ( Intel® for 8th/7th/6th/5th/4th/3th Generation
Core™ i7/Core™ i5, Pentium®/Celeron® optional)
GPU:Intel HD Graphics
RAM:4GB DDR3 (2*DDR4 optional) Support Maxmium 32G Memery
Storage:32GB/64GB/128GB
HDD:500 GB
Camera:front 2.0MP
Speaker:Built-in 2x 3W
WIFI:802.11 a/b/g/n/ac
Bluetooth:V4.0
I/O:USB3.0*2, USB2.0*4, Type-C Port*1, RJ45 *1, DC Jack*1,
Headphone Jack*1, 4-in-1 Card reader*1, Micphone Jack*1
Resolution:1920 x 1080
Operating System:Windows 10 home
Touch:Optional
Size:21.5”, 23.6” available
|

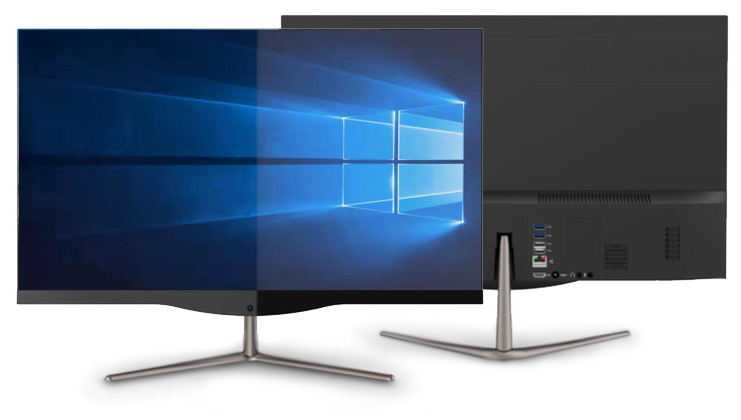

AIO2101 (21.5")  |
CPU:Core™i3 (Intel® for 8th/7th/6th/5th/4th/3th Generation
Core™ i7/Core™ i5, Pentium®/Celeron® optional)
GPU:Intel HD Graphics
RAM:4GB DDR3 (2*DDR4 optional) (6GB/8GB optional) (0GB)
SSD:120GB/128GB/240GB/480GB (0GB)
HDD:500GB/1TB
Camera:front 2.0MP
Speaker:Built-in 2x 3W
WIFI:802.11 a/b/g/n/ac
Bluetooth:V4.0
I/O:USB2.0 *4, Type-C Port*1, RJ45 *1, DC Jack*1, Headphone Jack*1,
4-in-1 Card reader*1, Micphone Jack*1
Resolution:1920 x 1080
Operating System:Windows 10 home
|

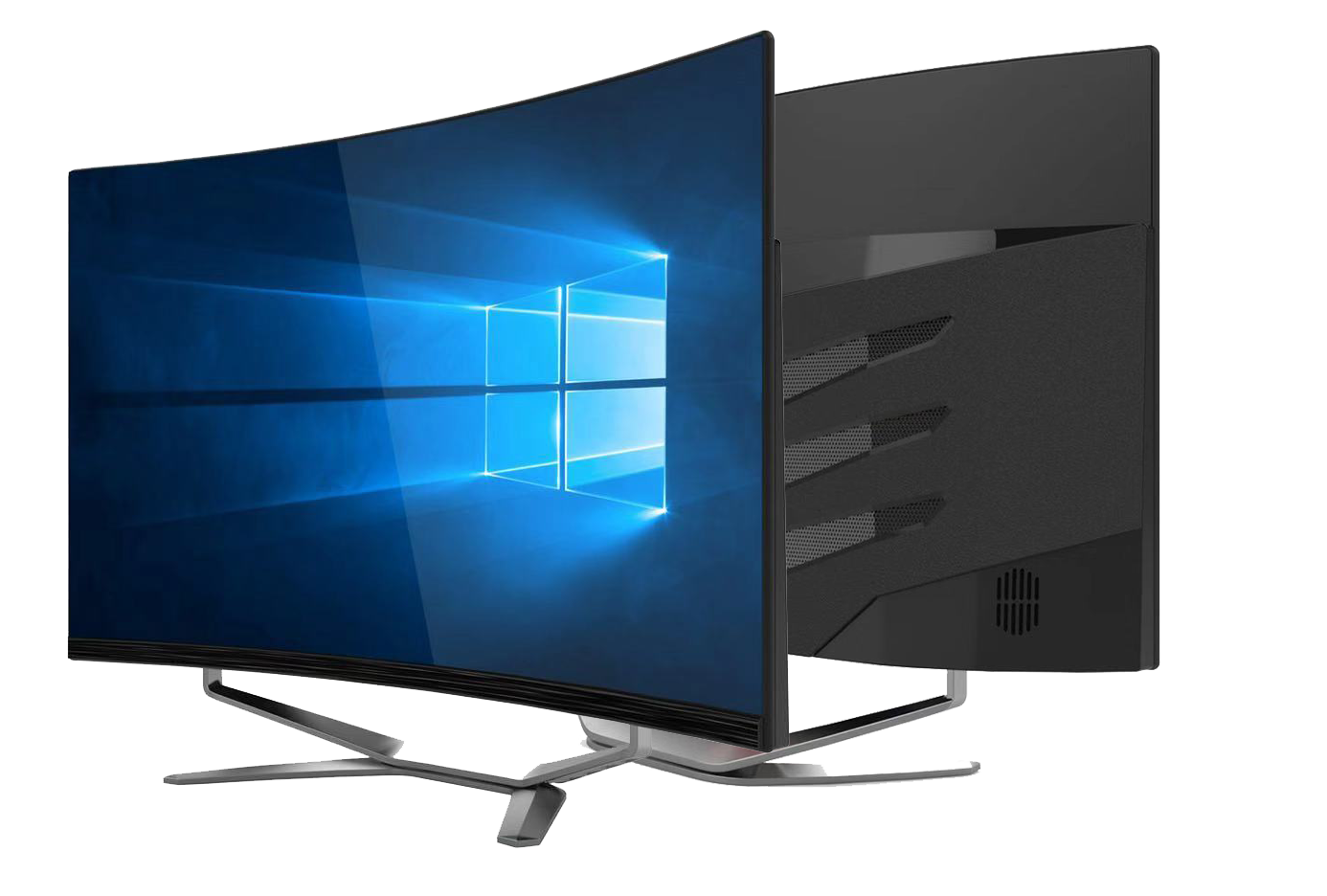

AIO2301 (23.6")  CURVED SCREEN |
CPU:Core™i3 (Intel® for 8th/7th/6th/5th/4th/3th Generation
Core™ i7/Core™ i5, Pentium®/Celeron® optional)
GPU:Intel HD Graphics
RAM:4GB DDR3 (2*DDR4 optional) (6GB/8GB optional) (0GB)
HDD:500GB/1TB
Camera:front 2.0MP
Speaker:Built-in 2x 3W
WIFI:802.11 a/b/g/n/ac
Bluetooth:V4.0
I/O:USB3.0 *2, USB2.0 *4, Type-C Port*1, RJ45 *1, DC Jack*1, Headphone Jack *1,
4-in-1 Card reader, Micphone Jack*1
Resolution:1920 x 1080
Operating System:Windows 10 home
|

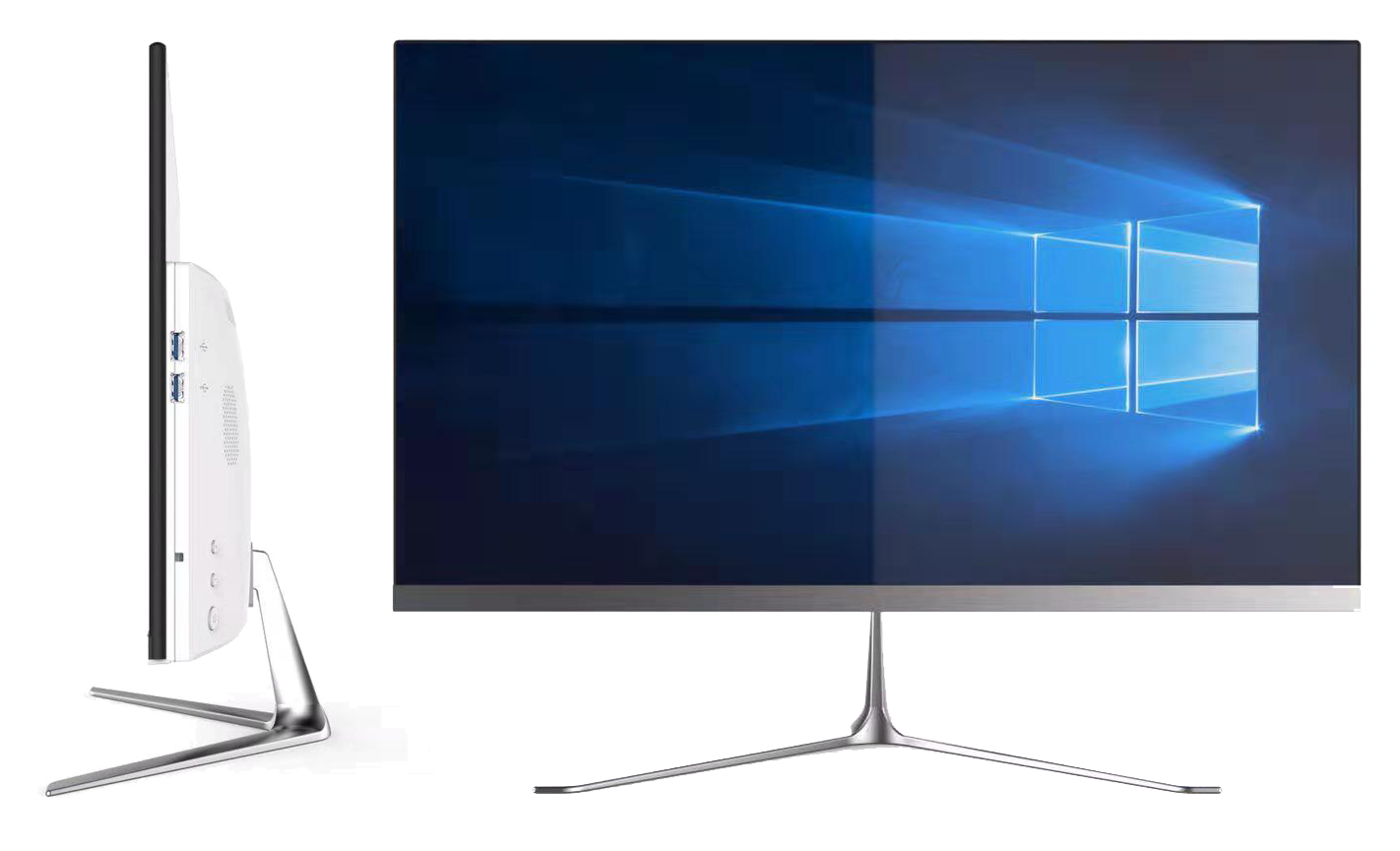

AIO2302 (23.8")  |
CPU:Core™i3 (Intel® for 8th/7th/6th/5th/4th/3th Generation
Core™ i7/Core™ i5, Pentium®/Celeron® optional)
GPU:Intel® HD Graphics
RAM:4GB DDR3 (2*DDR4 optional) (6GB/8GB optional) (0GB)
SSD:120GB/128GB/240GB/480GB (0GB)
HDD:500GB/1TB
Camera:front 2.0MP
Speaker:Built-in 2x 3W
WIFI:802.11 a/b/g/n/ac
Bluetooth:V4.0
I/O:USB3.0 *2, USB2.0 *4, Type-C Port*1, RJ45 *1, DC Jack*1, Headphone Jack *1,
4-in-1 Card reader, Micphone Jack*1
Resolution:1920 x 1080
Operating System:Windows 10 home
|

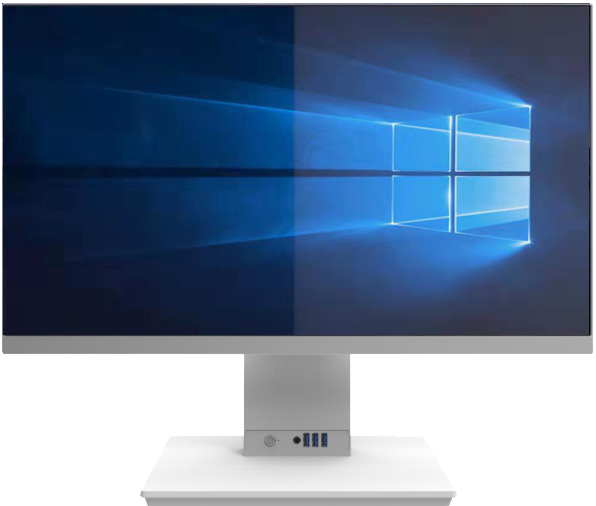

AIO2303 (23.8")  |
CPU:Core™i3 (Intel® for 8th/7th/6th/5th/4th/3th Generation
Core™ i7/Core™ i5, Pentium®/Celeron® optional)
GPU:Intel® HD Graphics
RAM:4GB DDR3 (2*DDR4 optional) (6GB/8GB optional) (0GB)
SSD:120GB/128GB/240GB/480GB (0GB)
HDD:500GB/1TB
Camera:front 2.0MP
Speaker:Built-in 2x 3W
WIFI:802.11 a/b/g/n/ac
Bluetooth:V4.0
I/O:USB3.0 *2, USB2.0 *4, Type-C Port*1, RJ45 *1, DC Jack*1, Headphone Jack *1,
4-in-1 Card reader, Micphone Jack*1
Resolution:1920 x 1080
Operating System:Windows 10 home
|

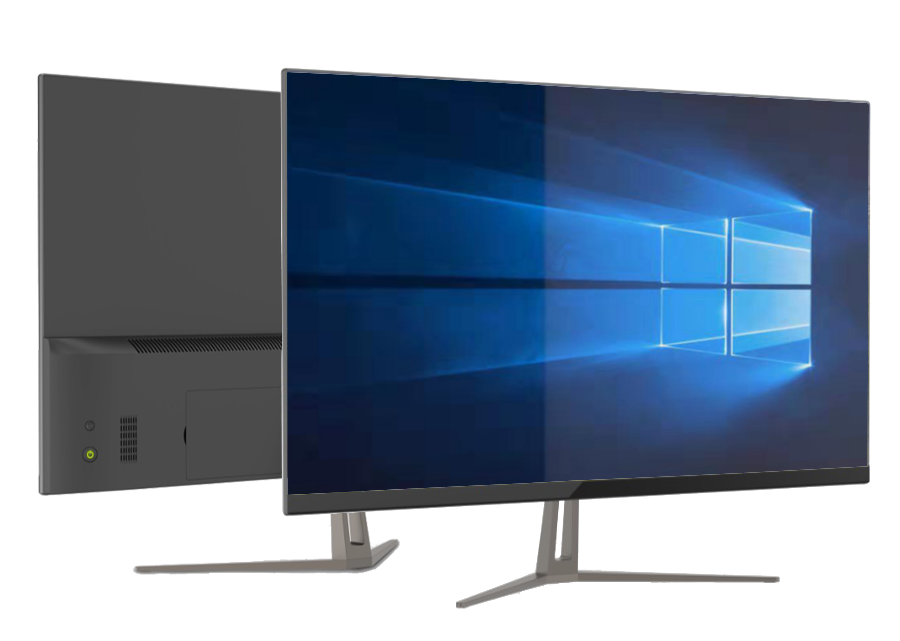

AIO2701 (27")  |
CPU:Core™i3 (Intel® for 8th/7th/6th/5th/4th/3th Generation
Core™ i7/Core™ i5, Pentium®/Celeron® optional)
GPU:Intel® HD Graphics
RAM:4GB DDR3 (2*DDR4 optional) (6GB/8GB optional) (0GB)
HDD:500GB/1TB
Speaker:Built-in 2x 2W
WIFI:Intel Stone Peak3165/CNVI9462
I/O:USB2.0*3/USB3.0*2, HDMI*1, Micphone Jack*1, RJ45 *1, DC Jack*1
Resolution:1920 x 1080
Operating System:Windows 10 home
|
|
|
|
 |

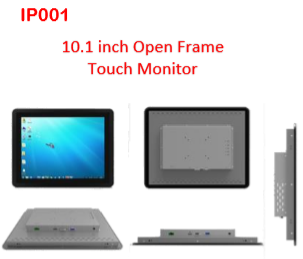

Screen Size : 10.1” LCD
Interface : Single LVDS 6bit
Backlight Type : WLED
Resolution : 1280*800/1920*1200 optional
Brightness : 300cd/m2
Visual Angle : View Angle Free
Touch panel Size : 10.1” matches with display device 16:10
Touch method : 10 points
Total thickness : around 4.3mm
Input method : Hand writing or capacitive pen
Touch times : Durable single-point>30 millions times
Explosion -proof : around 227g,no damage after the impact at the central area for once
Surface Durability : surface hardness equals glass, Moh's hardnesss level>7
Transmittance : >85%
Working voltage : Typical value+5VDC,Allowance range+4.75V+5.25V
Power supply : USB Bus
IC solution : ILI2302M
Language : Multi-language supported
Panel Material : Aluminum Alloy
Back shell material : High quality electrolytic plate
Waterproof : front panel IP65,back coverIP30
Total Weight : 1.52kg
Warranty : 3 years
Machine appearance : Intergrated industrial design, ergonomic and aesthetic principles, ultra-thin cabinet
,rich time breath. |
| |
 |

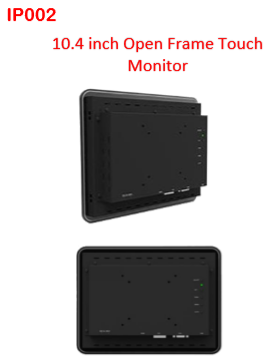

Screen Size : 10.4” 1024*768 /1920*1200 Optional,LCD with Single LVDS 6bit
Backlight : WLED
Brightness : 300cd/m2
Visual angle : View Angle Free
Touch panel size : 10.4” matches with display 4:3
touch method : 10 points
Total thickness : around 4.3mm
Input method : Hand writing or capacitive pen
Touch times : Durable single-point>30 millions times
Explosion -proof : around 227g,no damage after the impact at the central area for once
Surface Durability : surface hardness equals glass, Moh's hardnesss level>7
Transmittance : >85%
Working voltage : Typical value+5VDC,Allowance range+4.75V+5.25V
Power supply : USB Bus
IC solution : ILI2302M
Language : Multi-language supported
Panel Material : Aluminum Alloy
Back shell material : High quality electrolytic plate
Waterproof : front panel IP65,back coverIP30
Total Weight : 1.95kg
Warranty : 3 years
Machine appearance : Intergrated industrial design, ergonomic and aesthetic principles, ultra-thin cabinet,rich time breath. |
| |
 |

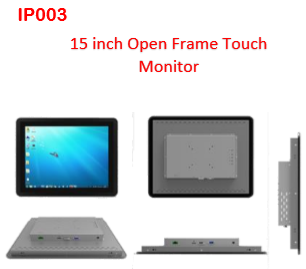

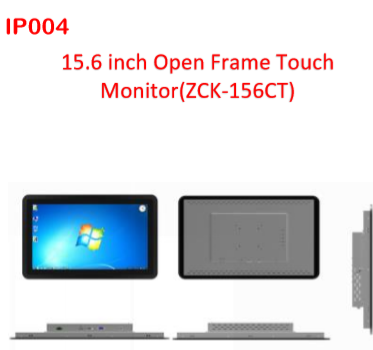

Screen Size : 15.6” 1024*768/19201200 LCD with Single LVDS 8bit
Backlight : WLED
Brightness : 300cd/m2
Visual angle : View Angle Free
Touch panel size : 15” matches with display 4:3
touch method : 10 points
Total thickness : around 4.3mm
Input method : Hand writing or capacitive pen
Touch times : Durable single-point>30 millions times
Explosion -proof : around 227g,no damage after the impact at the central area for once
Surface Durability : surface hardness equals glass, Moh's hardnesss level>7
Transmittance : >85%
Working voltage : Typical value+5VDC,Allowance range+4.75V+5.25V
Power supply : USB Bus
IC solution : ILI2302M
Language : Multi-language supported
Panel Material : Aluminum Alloy
Back shell material : High quality electrolytic plate
Waterproof : front panel IP65,back coverIP30
Total Weight : 1.95kg
Warranty : 3 years
Machine appearance : Intergrated industrial design, ergonomic and aesthetic principles, ultra-thin cabinet,rich time breath. |
| |
 |
Screen Size : 15.6” 1366*768 /1920*1200 optional LCD with Dual LVDS 8bit
Backlight/Brightness : WLED/ 400cd/m2
Visual angle : View Angle Free
Touch panel size : 15.6” matchese wtih display device 5:4
touch method : 10 points
Total thickness : around 4.3mm
Input method : Hand writing or capacitive pen
Touch times : Durable single-point>50 millions times
Explosion -proof : around 227g,no damage after the impact at the central area for once
Surface Durability : surface hardness equals glass, Moh's hardnesss level>7
Transmittance : >85%
Working voltage : Typical value+5VDC,Allowance range+4.75V+5.25V
Power supply : USB Bus
IC solution : ILI2302M
Language : Multi-language supported
Back shell material : High quality cold rolled sheet metal profile
Shell process : the outer shell of the shell is cold rolled plate or aluminum profile, the metal baking paint and the inside of the machine are galvanized anti-rust,shockproof, anti-magnetic,anti-interference,anti-static, complete insulation protection
Machine appearance : Intergrated industrial design, ergonomic and aesthetic principles, ultra-thin cabinet,rich time breath. |
| |
 |

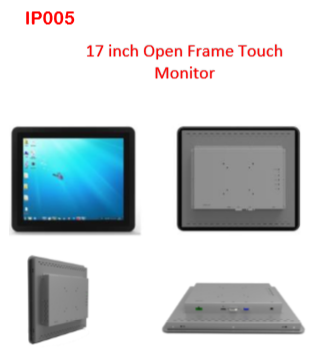

Screen Size : 17” 1280*1024 1920*1200 optional LCD with Dual LVDS 8bit
Backlight/Brightness : WLED/ 350cd/m2
Visual angle : View Angle Free
Touch panel size : 17” matches with display device 4:3
touch method : 10 points
Total thickness : around 4.3mm
Input method : Hand writing or capacitive pen
Touch times : Durable single-point>50 millions times
Explosion -proof : around 227g,no damage after the impact at the central area for once
Surface Durability : surface hardness equals glass, Moh's hardnesss level>7
Transmittance : >85%
Working voltage : Typical value+5VDC,Allowance range+4.75V+5.25V
Power supply : USB Bus
IC solution : ILI2302M
Language : Multi-language supported
Back shell material : High quality cold rolled sheet metal profile
Shell process : the outer shell of the shell is cold rolled plate or aluminum profile, the metal baking paint and the inside of the machine are galvanized anti-rust,shockproof, anti-magnetic,anti-interference,anti-static, complete insulation protection
Machine appearance : Intergrated industrial design, ergonomic and aesthetic principles, ultra-thin cabinet,rich time breath. |
| |
 |

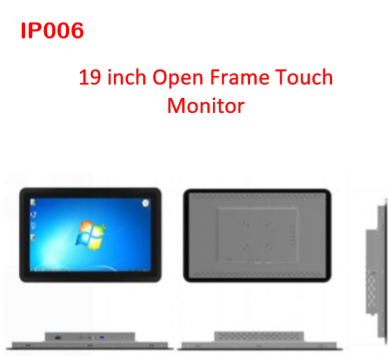

Screen Size : 19” 1280*1024 1920*1200 LCD with Dual LVDS 8bit
Backlight/Brightness : WLED/ 350cd/m2
Visual angle : View Angle Free
Touch panel size : 19” matches with display device 5:4
touch method : 10 points
Total thickness : around 4.3mm
Input method : Hand writing or capacitive pen
Touch times : Durable single-point>50 millions times
Explosion -proof : around 227g,no damage after the impact at the central area for once
Surface Durability : surface hardness equals glass, Moh's hardnesss level>7
Transmittance : >85%
Working voltage : Typical value+5VDC,Allowance range+4.75V+5.25V
Power supply : USB Bus
IC solution : ILI2302M
Language : Multi-language supported
Back shell material : High quality cold rolled sheet metal profile
Shell process : the outer shell of the shell is cold rolled plate or aluminum profile, the metal baking paint and the inside of the machine are galvanized anti-rust,shockproof, anti-magnetic,anti-interference,anti-static, complete insulation protection
Machine appearance : Intergrated industrial design, ergonomic and aesthetic principles, ultra-thin cabinet,rich time breath. |
| |
 |

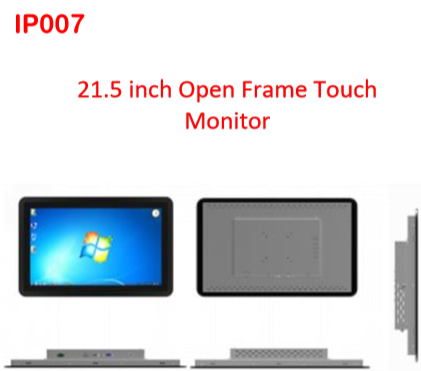

Screen Size : 21.5” 1920*1080,1920*1200 optional LCD with Dual LVDS 8bit
Backlight/ Brightness : WLED/ 250cd/m2
Visual angle : View Angle Free
Touch panel size : 21.5” matches with display device 16:9
touch method : 10 points
Total thickness : around 4.3mm
Input method : Hand writing or capacitive pen
Touch times : Durable single-point>30millions times
Explosion -proof : around 227g,no damage after the impact at the central area for once
Surface Durability : surface hardness equals glass, Moh's hardnesss level>7
Working voltage : Typical value+5VDC,Allowance range+4.75V+5.25V
Power supply : USB Bus
IC solution : ILI2302M
Back shell material : High quality cold rolled sheet metal profile
Shell process : the outer shell of the shell is cold rolled plate or aluminum profile, the metal baking paint and the inside of the machine are galvanized anti-rust,shockproof, anti-magnetic,anti-interference,anti-static, complete insulation protection
Machine appearance : Intergrated industrial design, ergonomic and aesthetic principles, ultra-thin cabinet,rich time breath.
Total Weight : 7.5kg |
| |
|
