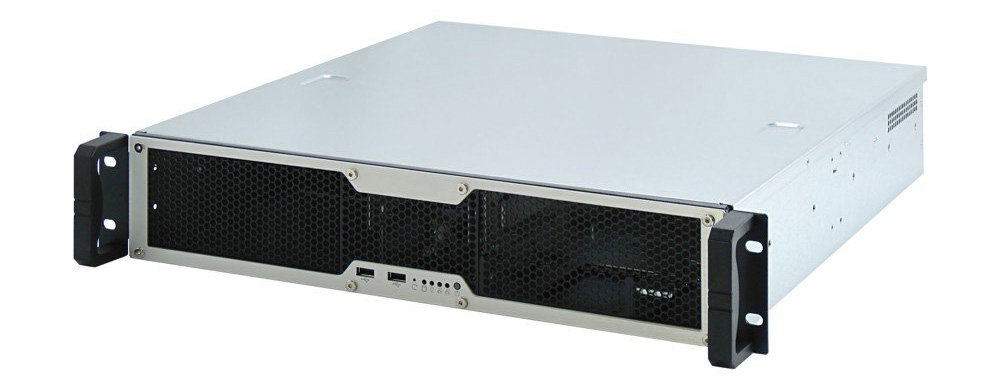

SES001
|
* Intel Xeon E-2100 processor
* 4 x DDR4 2666/2400 ECC/non-ECC U DIMM slots max 64 GB
* 8 x SATA3 6Gb/s
* 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x PCIe 3.0 x4
* External 1 x 5.25" + 1 x 3.5"
* Internal 2 x 3.5" + 2 x 2.5"
|
|

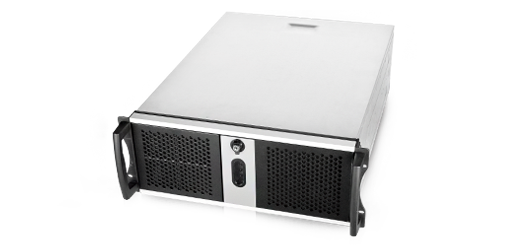

SES002
|
* Intel Xeon E5-1600/2600 processor v3/v4 series
* 12 x RDIMM/LRDIMM ECC DDR4 DIMM slots
* 8 x SATA III 6Gb/s ports
* 1 x SATA III 6Gb/s port supporting SATA DOM
* 1 x mSATA 6Gb/s slot
* 4 x PCIe slots
* External 3 x 5.25" + 1 x 3.5"
* Internal 4 x 3.5" + 1 x Slim ODD
|
|

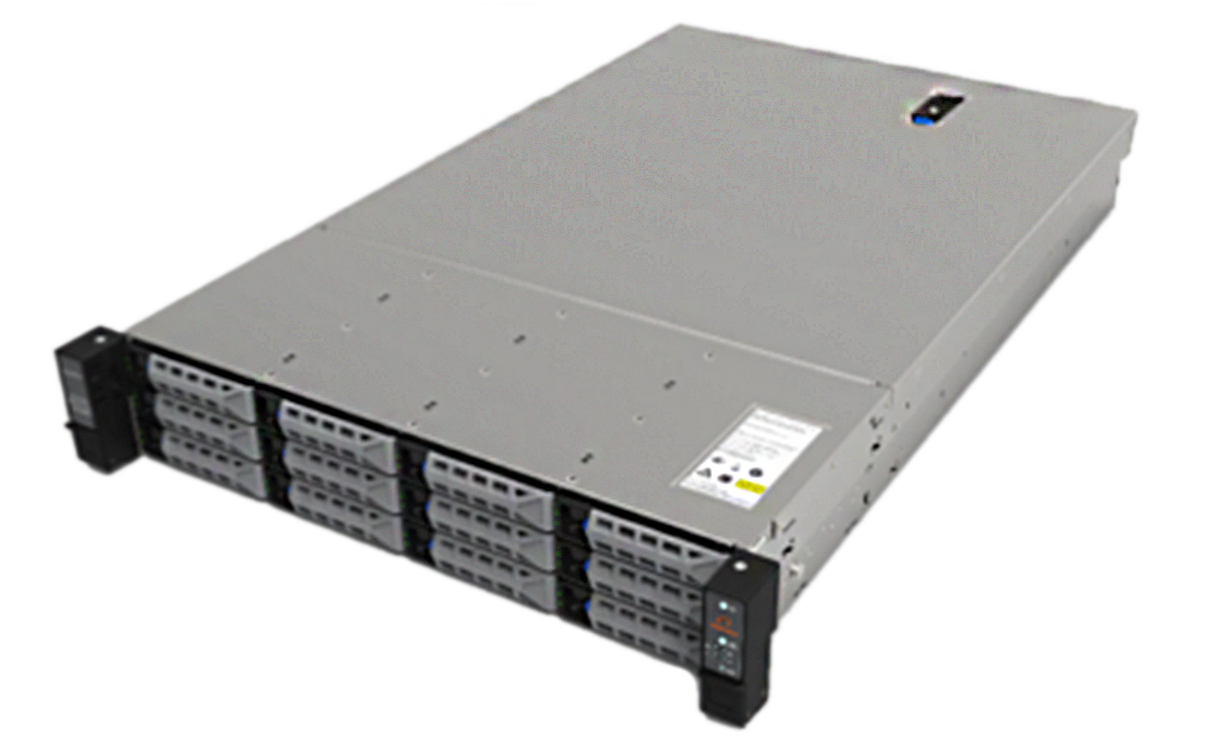

SES003
|
* 2 x Intel Xeon processors E5-1600/2600 v3/v4 series
* 16 x DDR4 2400/2133/1866/1600 MHz ECC RDIMM
* 10 x SATA 6Gb/s Ports (2 x SATA + 2 x Mini SAS Ports), one of SATA port support SATA DOM
* 2 x PCIe x8 full height, half length
* 1 x PCIe x8, 1 x PCIe x16 full height, half length
* External 12 x 3.5"/2.5" hot-plug HDDs
* Internal 4 x 3.5" drive bays (optional)
* 2 x 2.5" SSD/hard drive or NVMe hot-swappable bay (optional)
|
|

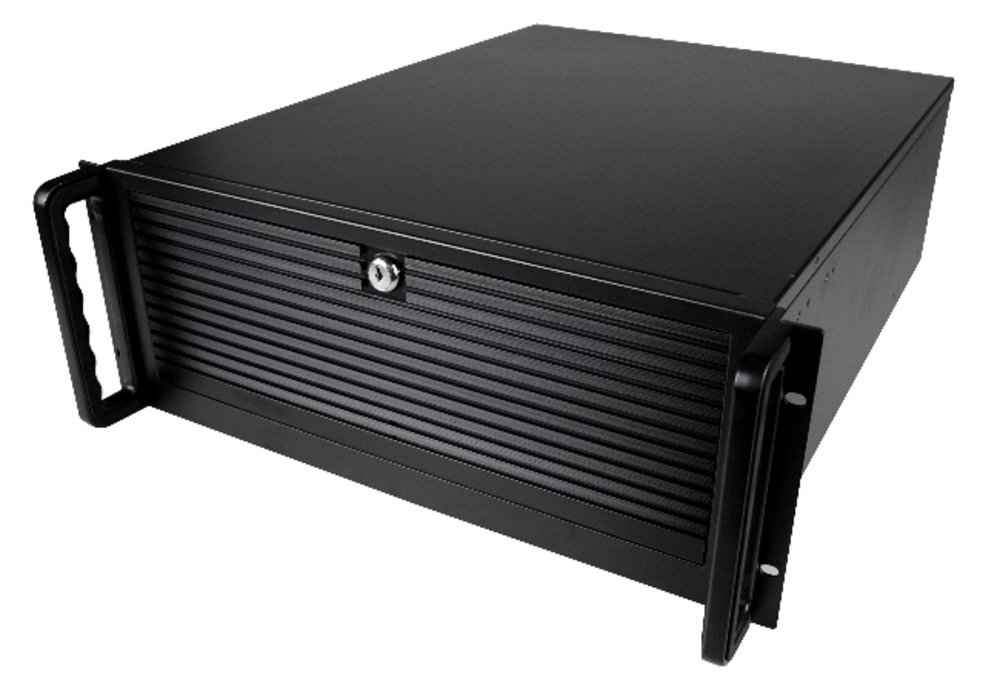

SEH004
|
* 2 x Intel Xeon processor E5-1600/2600 v3/v4 series
* 16 x DIMM, Up to 1024GB, DDR4 2400/2133/1866/1600 MHz RDIMM, LR-DIMM
* 10 x SATA 6Gb/s port
* 4 x PCIe x16, 2 x PCIe x8, 1 x M.2 Socket 3
* External 3 x 5.25"
* Internal 8 x 3.5"
|
|

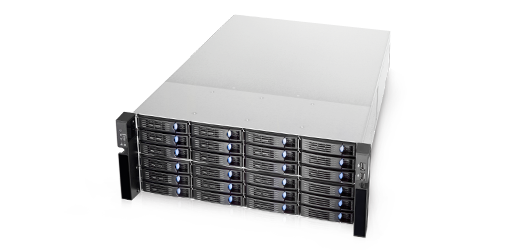

SES005
|
* 2 x Intel Xeon processor E5-1600/2600 v3/v4 series
* 24 x RDIMM/LRDIMM ECC DDR4 DIMM slots
* 10 x SATA III 6Gb/s
* 1 x PCIe x16, 3 x PCIe x8
* 1 x M.2 slot
* External 24 x 3.5" Hot-swap
|
|
SED006
|
* 2 x Intel® Xeon® Scalable Processors
* 24 x memory slots, up to 3TB 3DS ECC RDIMM/LRDIMM
* 8 x 2.5'' 12Gb/s SAS hot-swappable
* 2 x 2.5" 6Gb/s SATA HDD/SSD
* 2 x PCIe x16 slots (1 x FHHL, 1 x LP), 2 x OCP Mezzanine
* External 10 x 2.5" hot swap
|
|

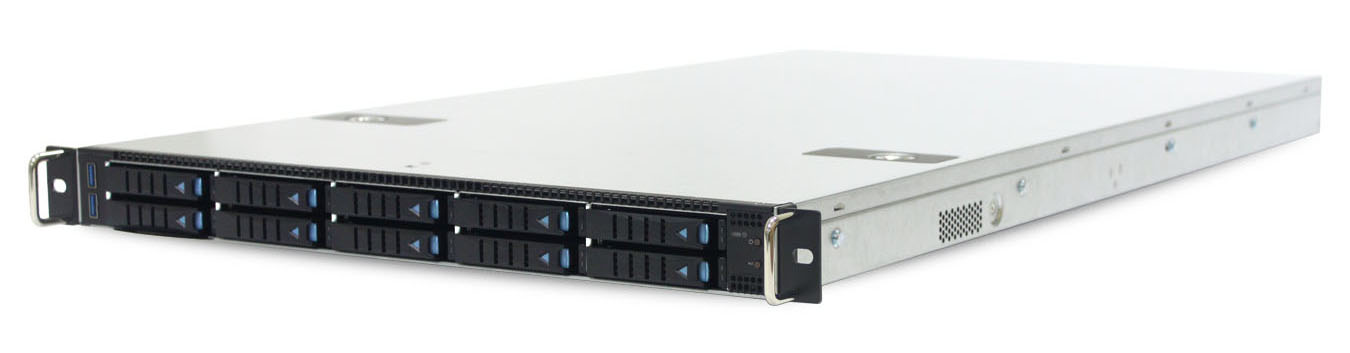

SED007
|
* 2 x Intel® Xeon® Scalable Processors
* 12 x DDR4 2666/2400MHz slots
* 8 x 2.5" 12Gb/s SAS hot-swappable
* 2 x 2.5" 6Gb/s SATA HDD/SSD
* 1 x PCIe x16 slot
|
|

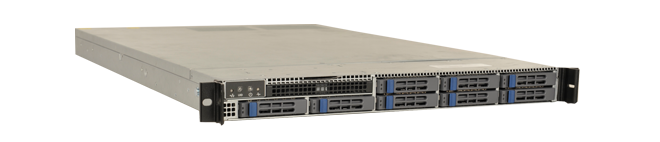

SES008
|
* 2 x Intel® Xeon® Scalable Processors
* 24 x DDR4 2666/2400 ECC RDIMM, also support Apache Pass DIMM
* 2 x PCIe x16 connectors
* 1 x OCP connector A (PCIe x8) (option)
SKU#1 : 8 x 2.5" SATA/SAS HDDs
SKU#2 : 8 x 2.5" U.2 HDDs
SKU#3 : 4 x 3.5" SATA/SAS HDDs + 3 x 2.5" SATA/SAS HDDs (Option)
All SKU : 2 x M.2 SSD 80mm*22mm (Option)
|
|

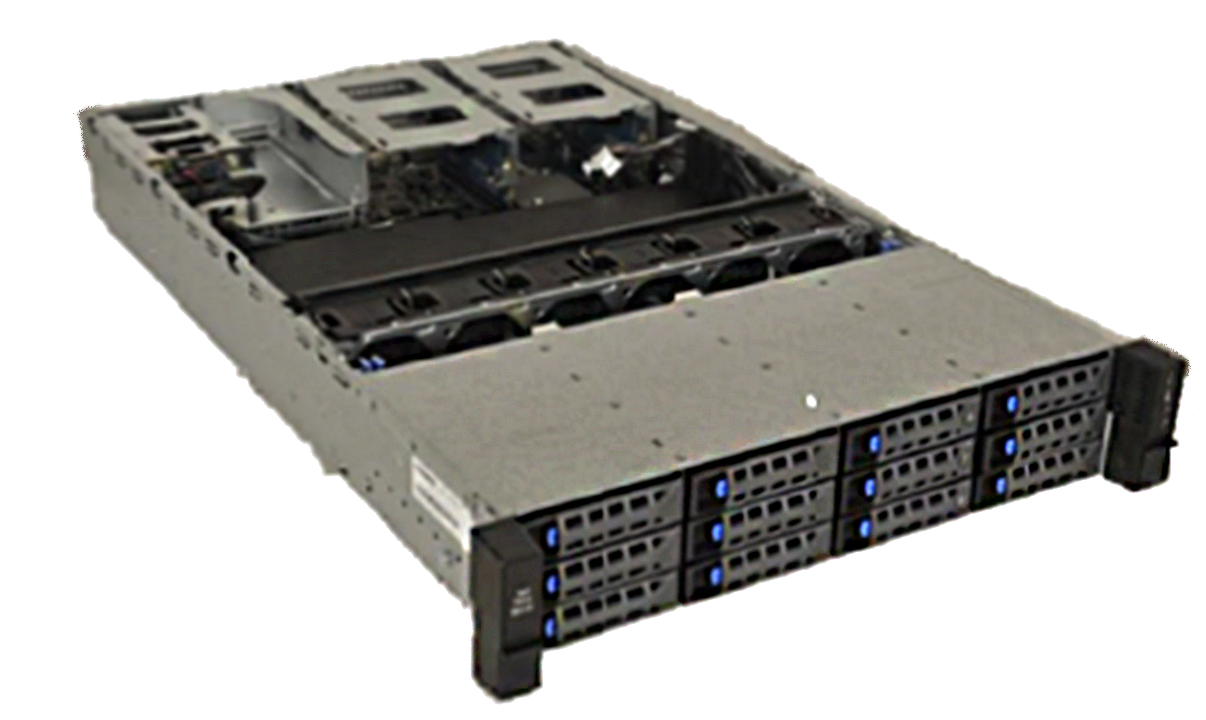

SED009
|
* 2 x Intel® Xeon® Scalable Processors
* 24 x DDR4 2666/2400 MHz ECC RDIMM, also support Apache Pass DIMM
* 1 x PCIe x16 connectors
* 1 x OCP connector A (PCIe x8)
* 2 x SlimLine (can support PCIe x8 ), one can support rear Two U.2 SSD
SKU#1 : 12 x 3.5" SATA/SAS HDDs
SKU#2 : 12 x 3.5" U.2 SSDs
SKU#3 : 24 x 2.5" SATA/SAS HDDs
SKU#4 : 24 x 2.5" U.2 SSDs
|
|

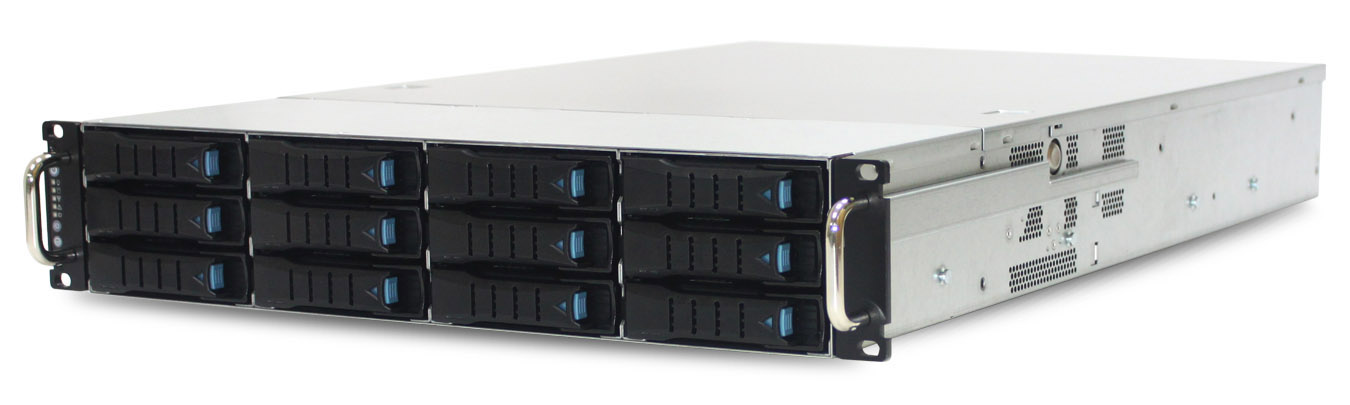

SED010
|
* 2 x Intel® Xeon® Scalable Processors
* 12 x DDR4 2666/2400MHz slots
* 2 x PCIe x16 slots (LP), 5 x PCIe x8 slots (LP)
* 12 x 3.5" hot swap, 2 x 2.5" hot swap (7mm , rear)
|
|

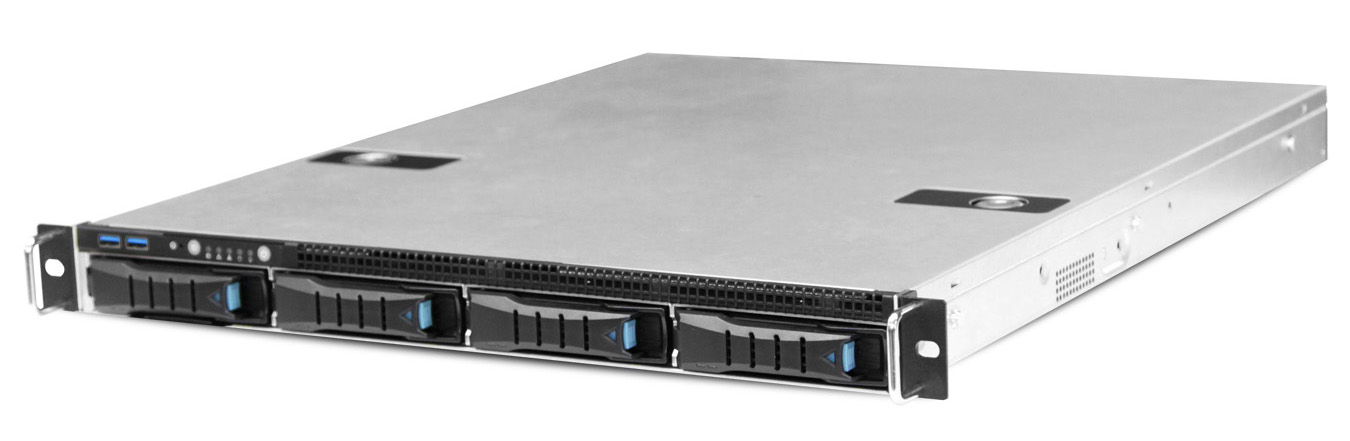

SES012
|
* Intel® C232 Series Chipset
* 4 x DIMM slots, DDR4 2133-2400 ECC UDIMM, up to 64G
* 4 x 3.5''(tool-less), 4 x 2.5''(tool-less)
* 1 x PCIe x16 slot (FH), 1 x PCIe x8 slot (optional for non-IOC SKU) (FH)
|
|

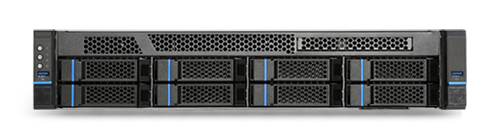

SES013
|
* Intel® Xeon® E-2100 Series Processors
* Dual channel DDR4 2133/2666/2400 ECC and non-ECC U DIMM max 64 GB
* 8 x SATA3 by C246, 4 x SATA3 by Marvell 9172
* 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x PCIe 3.0 x1, 1 x PCI, 3 x M.2
* External 8 x 3.5" Hot-swap, 1 x Slim ODD
* Internal 2 x 2.5"
|
|

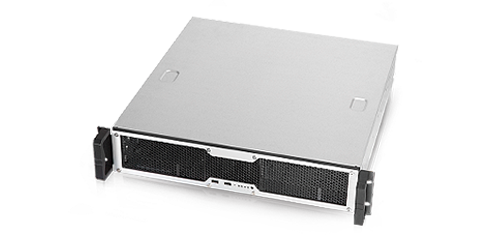

SES014
|
* Intel® Xeon® E-2100 Series Processors
* 4 x DDR4 2133/2666/2400 ECC and non- ECC U DIMM max 64 GB
* 8 x SATA3 by C246, 4 x SATA3
* 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x PCIe 3.0 x1, 1 x PCI, 3 x M.2
* External 2 x 5.25" + 1 x 3.5", 1 x Slim ODD
* Internal 2 x 2.5"
|
|

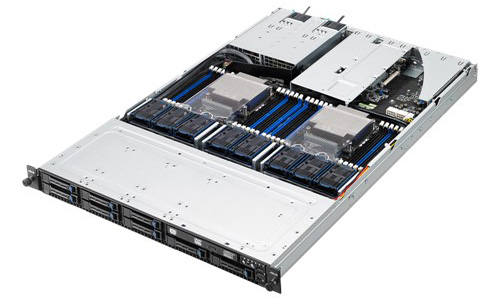

SES016
|
* 2 x Intel Xeon E5-2600 v3/v4 product family
* 24 x DDR4 2400 DIMM slots, max 1.5TB
* 10 x SATA3 6Gb/s
* 2 x PCIe3.0 x16 + 2 x PCIe3.0 x8
* 8 x 2.5" Hot-swap Storage Bays
|
|
SED017
|
* Intel Xeon E-2100 Processors
* 4 x DDR4 2666 DIMM, max 64GB
* 8 x SATA3 6Gb/s
* 1 x PCIe3.0 x16 + 2 x PCIe3.0 x8 + 1 x PCI + 1 x MIO
* 4 x Hot-swap 3.5/2.5" HDD Bays
|
|

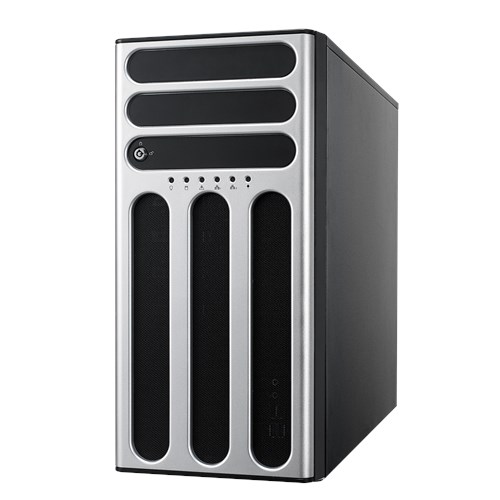

SES018
|
* 2 x Intel Xeon E5-2600 v3/v4 product family
* 16 x DDR4 2400 DIMM, max 1TB
* 10 x SATA3 6Gb/s
* 6 x PCIe3.0 x16
* 8 x 3.5"/ 2.5" Hot-swap Storage Bays
* 1 x M.2
|
|

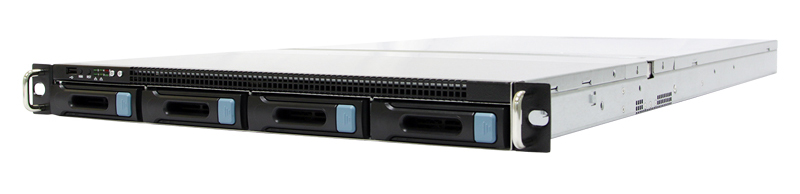

SED019
|
* 2 x Intel Xeon E5-2600 v3/v4 product family
* 12 x DDR4 2133 DIMM, max 1.5TB
* 4 x PCIe3.0 x8
* External : 4 x 3.5" hot swap
* Internal : 2 x 2.5"
|
|

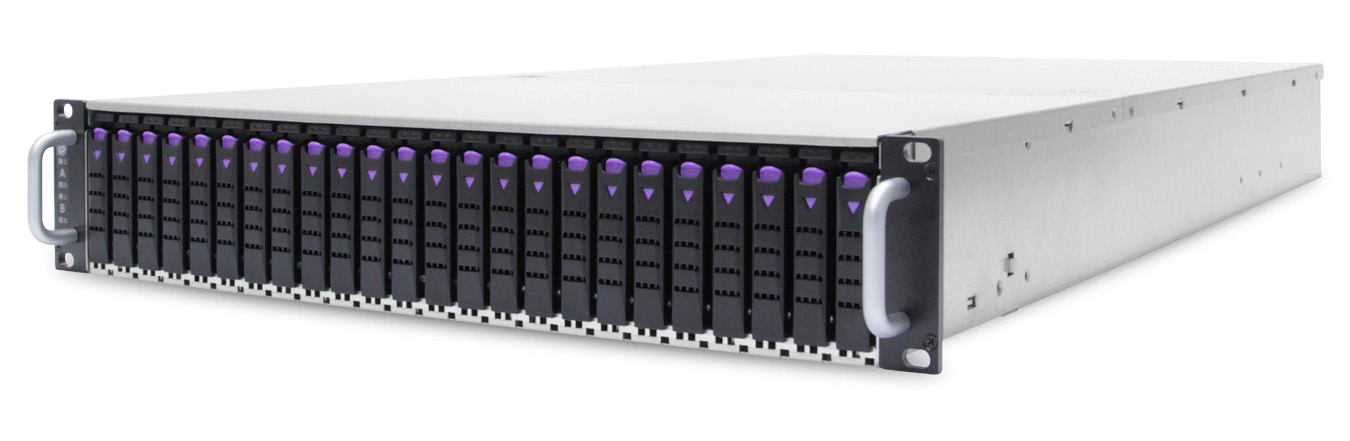

SES020
|
* 2 x Intel Xeon E5-2600 v3/v4 product family
* 12 x DDR4 2400 DIMM, max 1.5TB
* 2 x PCIe3.0 x16
* External: 24 x 2.5" hot swap
* Internal: 2 x 2.5"
|
|

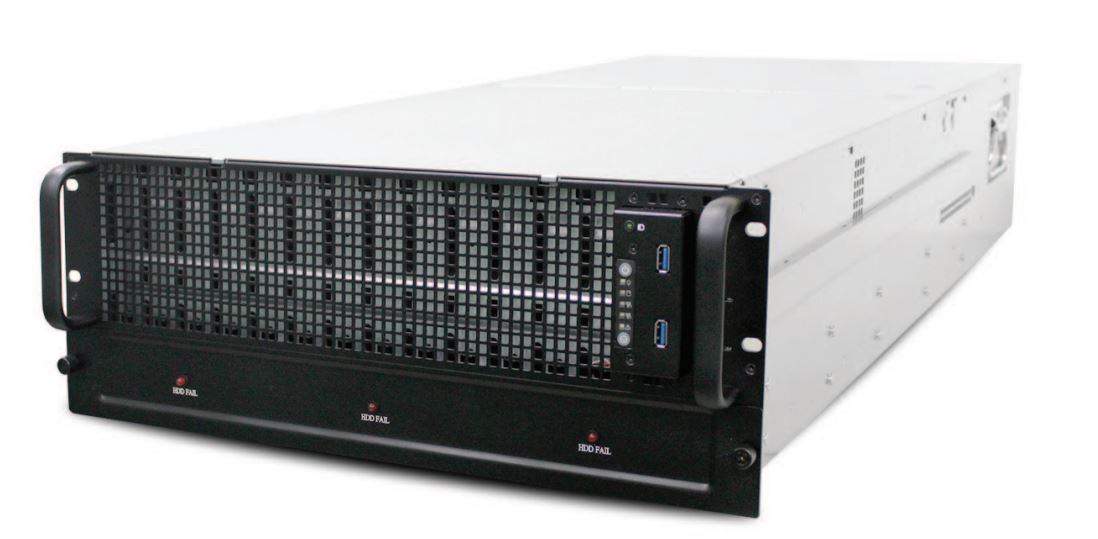

SED021
|
* 2 x Intel Xeon Scalable Processors
* 12 x DDR4 2666 DIMM, max 1.5TB
* 2 x PCIe x16 + 3 x PCIe x8
* 60 x 3.5" hot swap + 2 x 2.5" hot swap
|
|

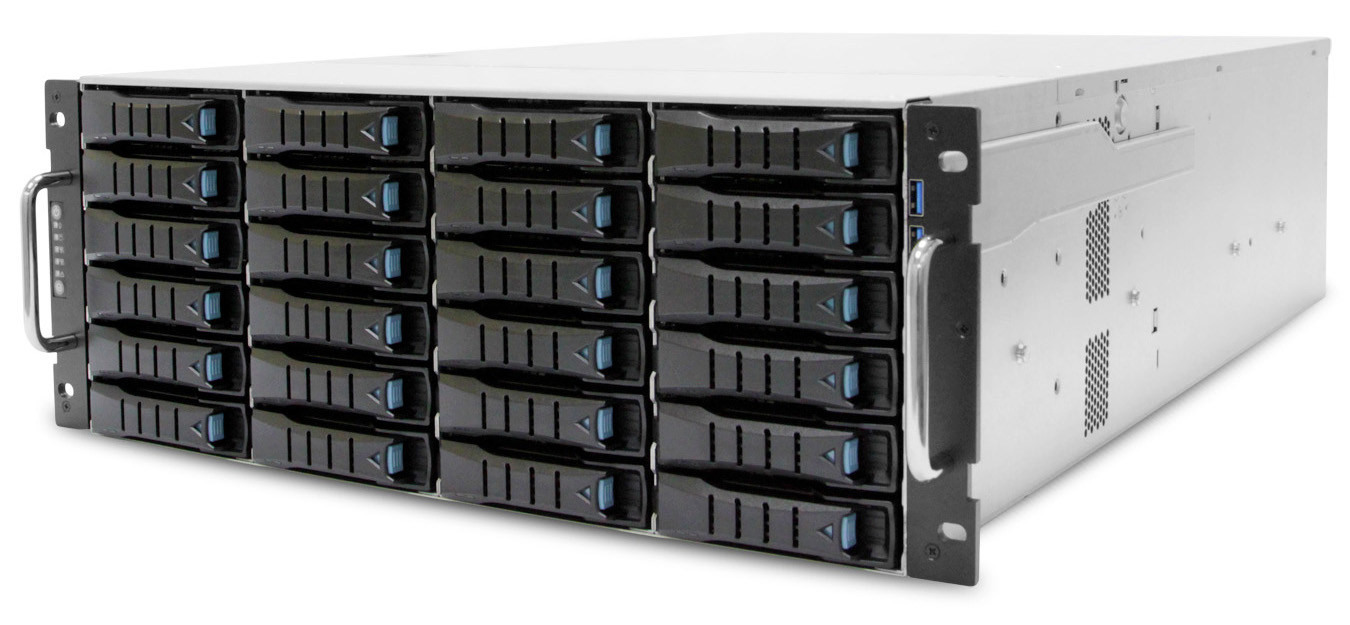

SES022
|
* 2 x Intel Xeon Scalable Processors
* 12 x DDR4 2666 DIMM, max 1.5TB
* 2 x PCIe x16 + 3 x PCIe x8
* External : 24 x 3.5" hot swap
* Internal : 2 x 2.5" hot swap
|
|

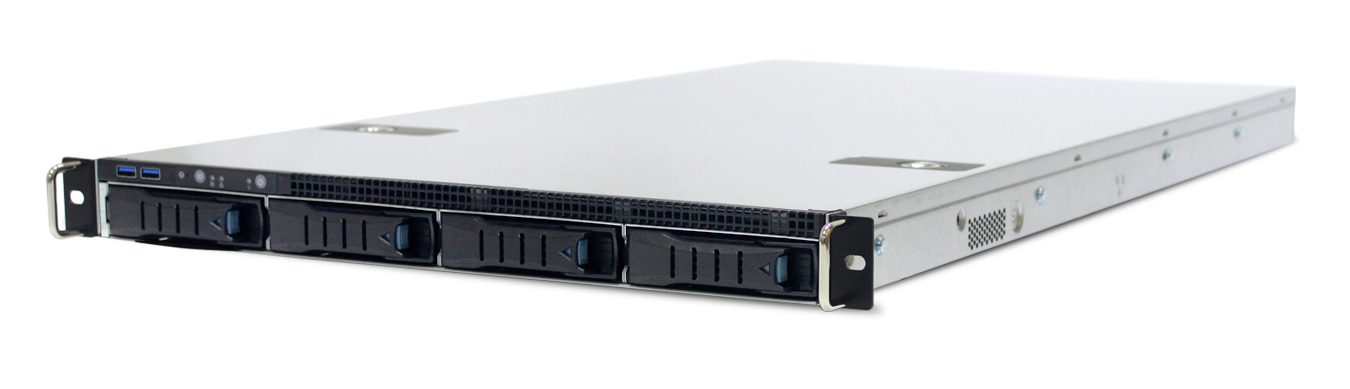

SED023
|
* 2 x Intel Xeon Scalable Processors
* 24 x DDR4 2666 DIMM, max 3TB
* 1 x PCIe3.0 x16 + 1 x PCIe3.0 x8
* External : 4 x 3.5" hot swap
* Internal : 2 x 2.5"
|
|

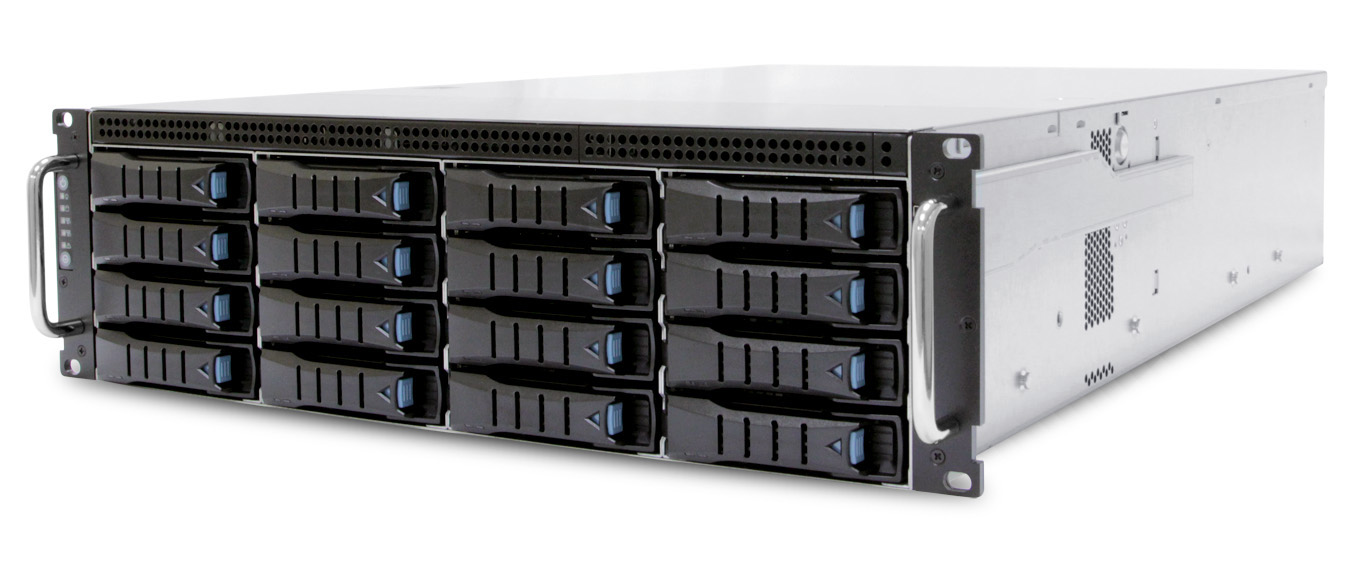

SES024
|
* 2 x Intel Xeon E5-2600 v3/v4 product family
* 16 x DDR4 2400 DIMM, max 2TB
* 3 x PCIe3.0 x16 + 3 x PCIe3.0 x8
* 16 x 3.5" hot swap + 2 x 2.5"
|
|

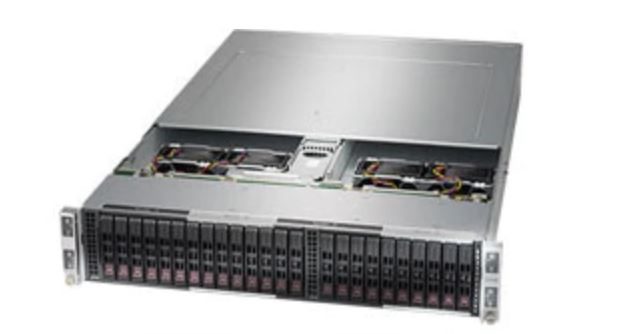

SEN025
|
* 2U - 4 nodes server
* 2 x Intel Xeon Scalable Processors per node
* 96 x DDR4 2933 DIMM, up to 24TB
* 8 x PCIe slots
* 24 x 2.5" hot-swap storage bays
|
|

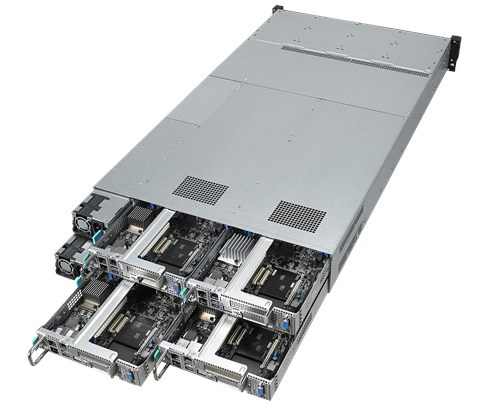

SEN026
|
* 2U - 4 nodes server
* 2 x Intel Xeon Scalable Processors per node
* 12 x DDR4 2933 DIMM, up to 1.5TB(per node)
* 4 x PCIe slots
* 8 x 2.5" SAS/SATA/NVMe hot-swap bays
|
|
SEN027
|
* 2U - 4 nodes server
* 2 x Intel Xeon Scalable Processors per node
* 12 x DDR4 2933 DIMM, up to 1.5TB per node
* 4 x PCIe slots
* 24 x 2.5" hot-swap storage bays
|
|

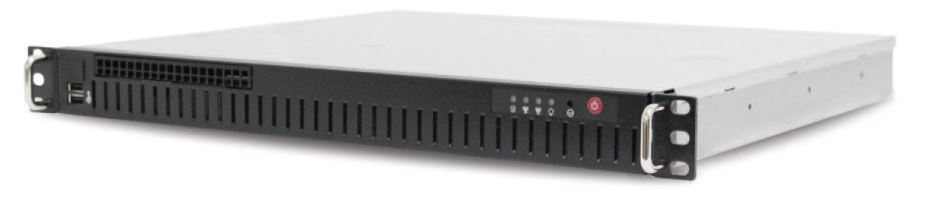

SES028
|
* 1 x Intel Xeon E3-1200 v5/v6 product family
* 4 x DDR4 2400 UDIMM, up to 64GB
* 1 x PCIe3.0 x16 slot
* 2 x 3.5" internal HDD storage bays
|
