RUGGED WINDOWS TABLET & NOTEBOOK
|
|

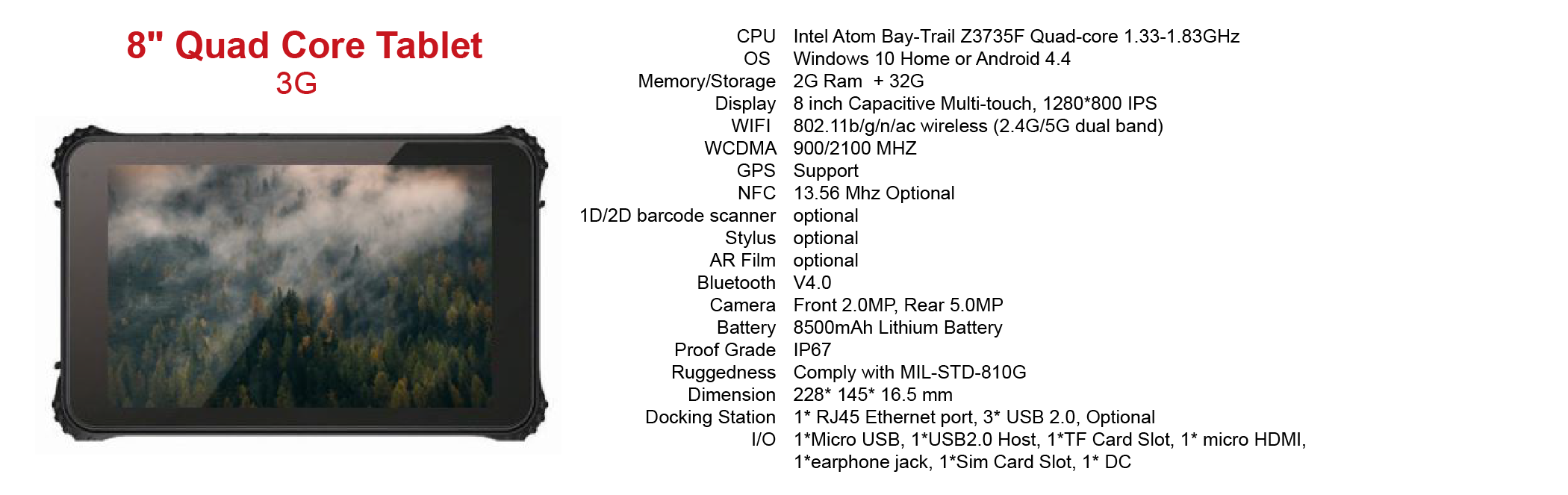

IMD - 801
|
8" Quad Core Tablet
3G
|
CPU : Intel Atom Bay-Trail Z3735F Quad-core 1.33-1.83GHz
OS : Windows 10 Home or Android 4.4
Memory/Storage : 2G Ram + 32G
Display : 8 inch Capacitive Multi-touch, 1280*800 IPS
WIFI : 802.11b/g/n/ac wireless (2.4G/5G dual band)
WCDMA : 900/2100 MHZ
GPS : Support
NFC : 13.56 Mhz Optional
1D/2D barcode scanner : optional
Stylus : optional
AR Film : optional
Bluetooth : V4.0
Camera : Front 2.0MP, Rear 5.0MP
Battery : 8500mAh Lithium Battery
Proof Grade : IP67
Ruggedness : Comply with MIL-STD-810G
Dimension : 228* 145* 16.5 mm
Docking Station : 1* RJ45 Ethernet port, 3* USB 2.0, Optional
I/O : 1*Micro USB, 1*USB2.0 Host, 1*TF Card Slot, 1* micro HDMI,
1*earphone jack, 1*Sim Card Slot, 1* DC |
GPS
NFC Optional
1D/2D Barcode Scanner Optional
MIL-STD-810G
|
|
| |
|
★

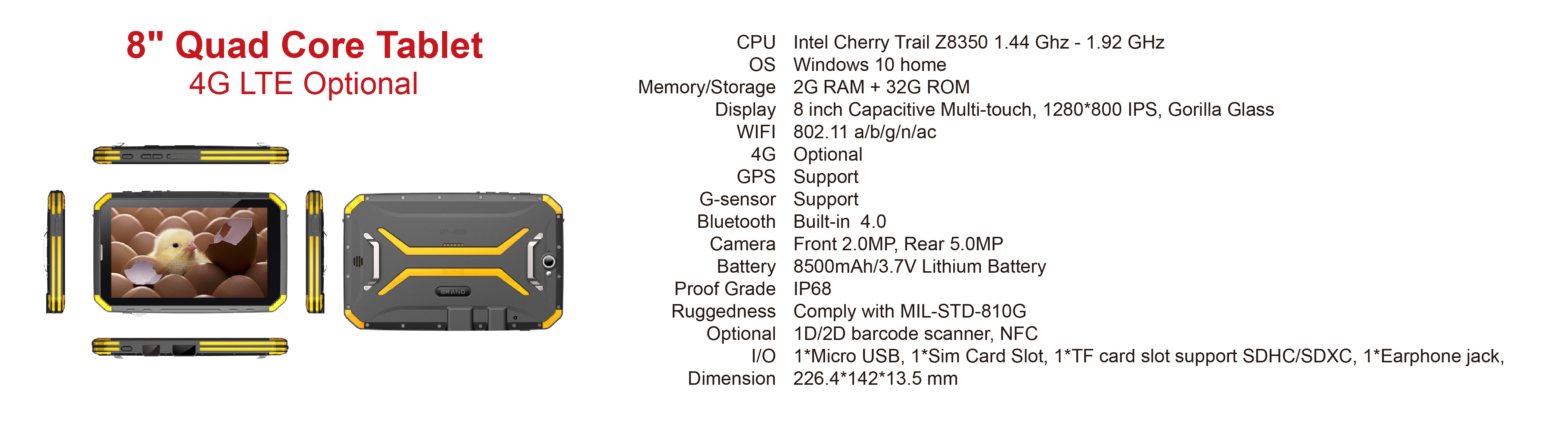

IMD - 802A
|
8" Quad Core Tablet
4G LTE optional
|
CPU : Intel Cherry Trail Z8350 1.44 Ghz - 1.92 GHz
OS : Windows 10 home
Memory/Storage : 2G RAM + 32G ROM
Display : 8 inch Capacitive Multi-touch, 1280*800 IPS, Gorilla Glass
WIFI : 802.11 a/b/g/n/ac
4G : Optional
GPS : Support
G-sensor : Support
Bluetooth : Built-in 4.0
Camera : Front 2.0MP, Rear 5.0MP
Battery : 8500mAh/3.7V Lithium Battery
Proof Grade : IP68
Ruggedness : Comply with MIL-STD-810G
I/O : 1*Micro USB, 1*Sim Card Slot, 1*TF card slot support SDHC/SDXC, 1*Earphone jack
Dimension : 226.4*142*13.5 mm
Optional : 1D/2D barcode scanner, NFC |
MIL-STD-810G
NFC Optional
1D/2D Barcode Scanner Optional
|
|
| |
|
|

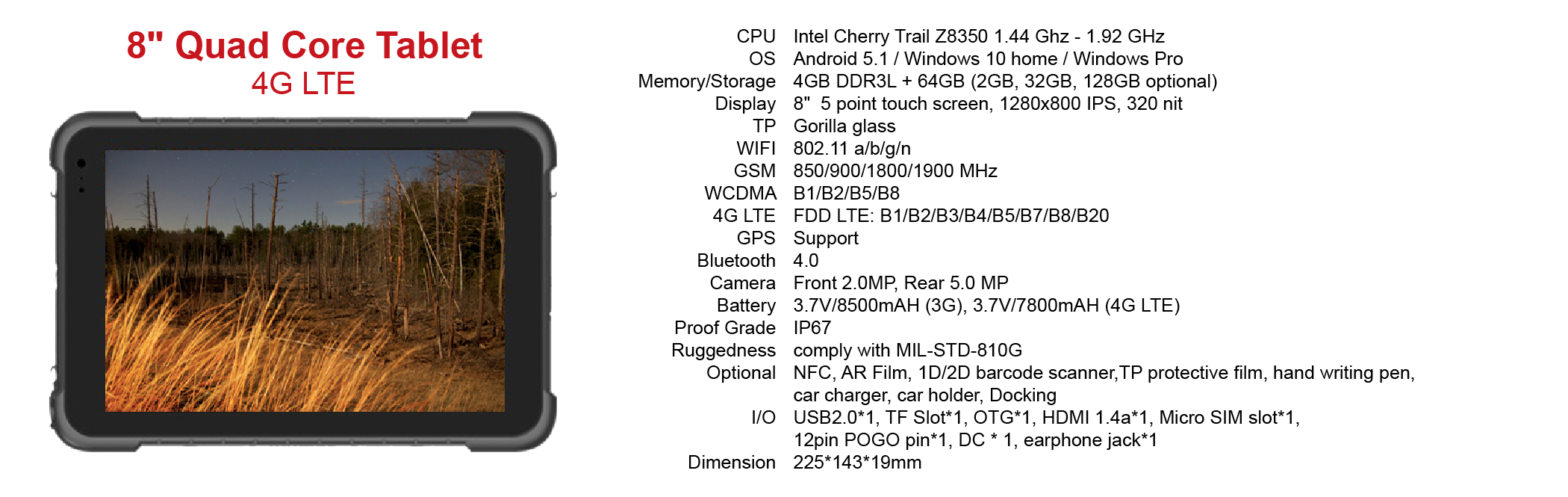

IMD - 803
|
8" Quad Core Tablet
4G LTE
|
CPU : Intel Cherry Trail Z8350 1.44 Ghz - 1.92 GHz
OS : Android 5.1 / Windows 10 home / Windows Pro
Memory/Storage : 4GB DDR3L + 64GB (2GB, 32GB, 128GB optional)
Display : 8" 5 point touch screen, 1280x800 IPS, 320 nit
TP : Gorilla glass
WIFI : 802.11 a/b/g/n
GSM : 850/900/1800/1900 MHz
WCDMA : B1/B2/B5/B8
4G LTE : FDD LTE: B1/B2/B3/B4/B5/B7/B8/B20
GPS : Support
Bluetooth : 4.0
Camera : Front 2.0MP, Rear 5.0 MP
Battery : 3.7V/8500mAH (3G), 3.7V/7800mAH (4G LTE)
Proof Grade : IP67
Ruggedness : comply with MIL-STD-810G
Optional : NFC, AR Film, 1D/2D barcode scanner,TP protective film,
hand writing pen, car charger, car holder, Docking
I/O : USB2.0*1, TF Slot*1, OTG*1, HDMI 1.4a*1,
Micro SIM slot*1, 12pin POGO pin*1, DC * 1, earphone jack*1
Dimension : 225*143*19mm |
GPS
NFC Optional
1D/2D Barcode Scanner Optional
MIL-STD-810G
|
|
| |
|
★

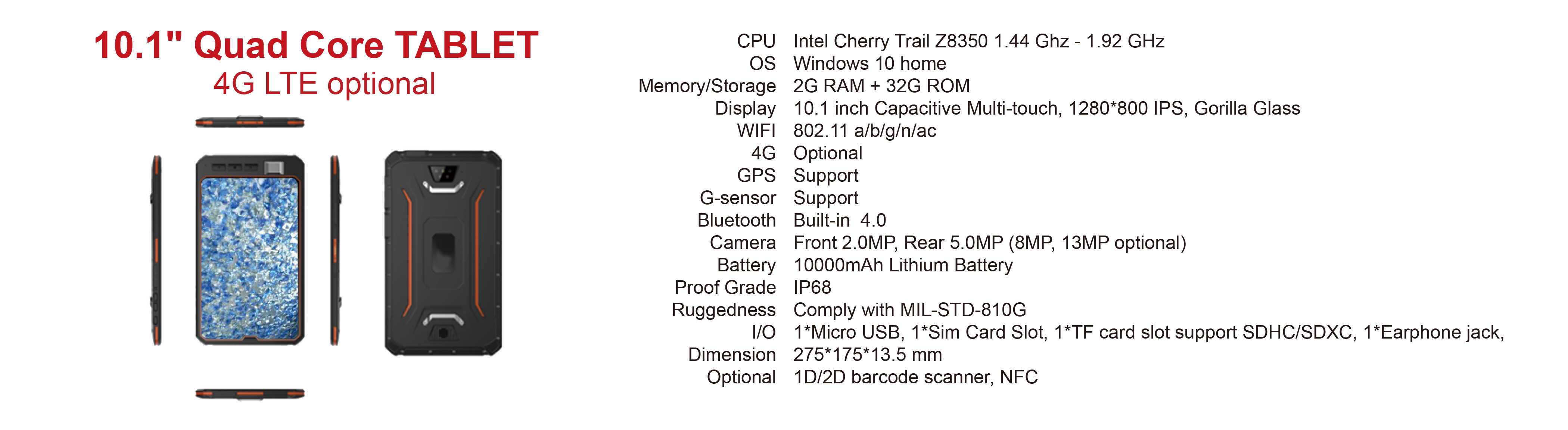

IMD - 1001B
|
10.1" Quad Core Tablet
4G LTE optional
|
CPU : Intel Cherry Trail Z8350 1.44 Ghz - 1.92 GHz
OS : Windows 10 home
Memory/Storage : 2G RAM + 32G ROM
Display : 10.1 inch Capacitive Multi-touch, 1280*800 IPS, Gorilla Glass
WIFI : 802.11 a/b/g/n/ac
4G : Optional
GPS : Support
G-sensor : Support
Bluetooth : Built-in 4.0
Camera : Front 2.0MP, Rear 5.0MP (8MP, 13MP optional)
Battery : 10000mAh Lithium Battery
Proof Grade : IP68
Ruggedness : Comply with MIL-STD-810G
I/O : 1*Micro USB, 1*Sim Card Slot, 1*TF card slot support SDHC/SDXC, 1*Earphone jack
Dimension : 275*175*13.5 mm
Optional : 1D/2D barcode scanner, NFC |
MIL-STD-810G
NFC Optional
1D/2D Barcode Scanner Optional
|
|
| |
|
|

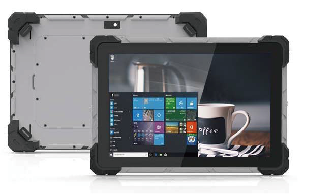

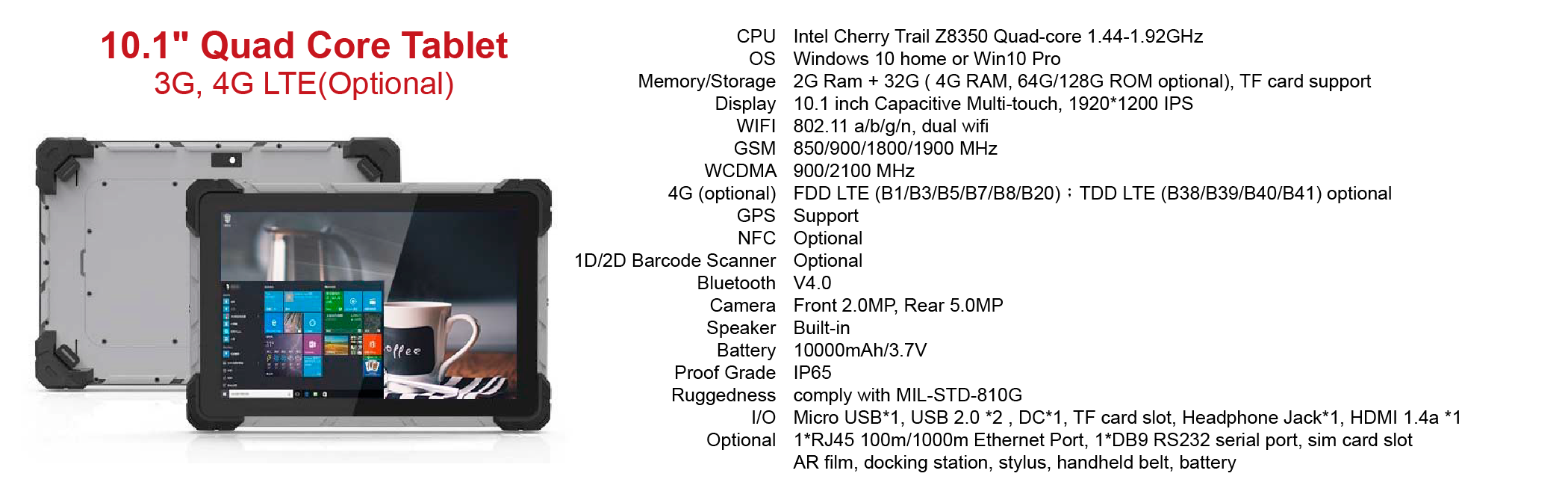

IMD - 1002
|
10.1" Quad Core Tablet
3G, 4G LTE (Optional)
|
CPU : Intel Cherry Trail Z8350 Quad-core 1.44-1.92GHz
OS : Win10 Pro
Memory/Storage : 4G RAM, 64G ROM (128G ROM optional), TF card support
Display : 10.1 inch Capacitive Multi-touch, 1920*1200 IPS
WIFI : 802.11 a/b/g/n, dual wifi
GSM : 850/900/1800/1900 MHz
WCDMA : 900/2100 MHz
4G (optional) : FDD LTE (B1/B3/B5/B7/B8/B20)；TDD LTE (B38/B39/B40/B41) optional
GPS : Support
NFC : Optional
1D/2D Barcode Scanner : Optional
Bluetooth : V4.0
Camera : Front 2.0MP, Rear 5.0MP
Speaker : Built-in
Battery : 10000mAh/3.7V
Proof Grade : IP65
Ruggedness : comply with MIL-STD-810G
I/O : Micro USB*1, USB 2.0 *2 , DC*1, TF card slot, Headphone Jack*1, HDMI 1.4a *1
1*RJ45 100m/1000m Ethernet Port, 1*DB9 RS232 serial port, sim card slot
Optional : AR film, docking station, stylus, handheld belt, battery |
GPS
NFC Optional
1D/2D Barcode Scanner Optional
Stylus Optional
4G LTE (optional)
|
|
| |
|
|

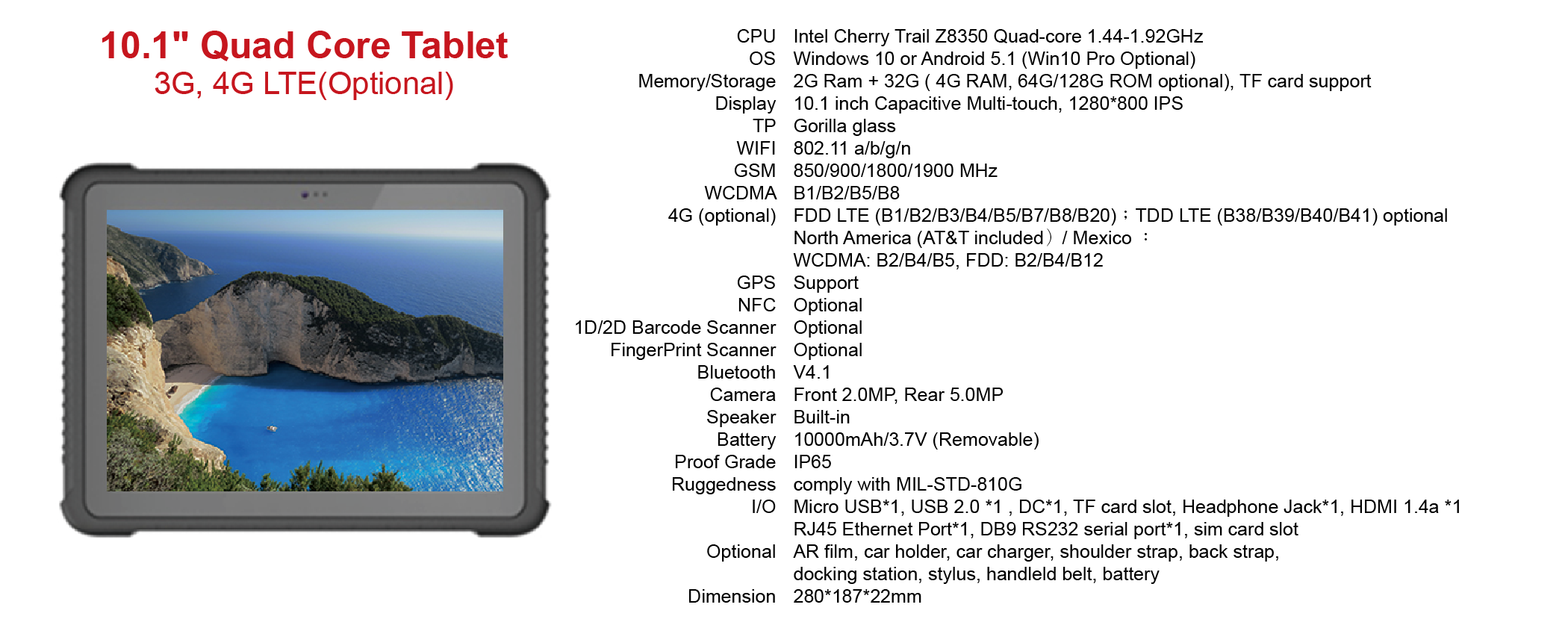

IMD - 1003
|
10.1" Quad Core Tablet
3G, 4G LTE (Optional)
|
CPU : Intel Cherry Trail Z8350 Quad-core 1.44-1.92GHz
OS : Win10 home
Memory/Storage : 2G Ram + 32G ( 4G RAM, 64G/128G ROM optional), TF card support
Display : 10.1 inch Capacitive Multi-touch, 1280*800 IPS
TP : Gorilla glass
WIFI : 802.11 a/b/g/n
GSM : 850/900/1800/1900 MHz
WCDMA : B1/B2/B5/B8
4G (optional) :
FDD LTE (B1/B2/B3/B4/B5/B7/B8/B20)；
TDD LTE (B38/B39/B40/B41) optional
North America (AT&T included）/ Mexico ：
WCDMA: B2/B4/B5, FDD: B2/B4/B12
GPS : Support
NFC : Optional
1D/2D Barcode Scanner : Optional
Bluetooth : V4.1
Camera : Front 2.0MP, Rear 5.0MP
Speaker : Built-in
Battery : 10000mAh/3.7V (Removable)
Proof Grade : IP65
Ruggedness : MIL-STD-810G
I/O : Micro USB*1, USB 2.0 *1 , DC*1, TF card slot,
Headphone Jack*1,
HDMI 1.4a *1
RJ45 Ethernet Port*1,
DB9 RS232 serial port*1, sim card slot
Optional : AR film, car holder, car charger, shoulder strap, back strap, docking station, stylus, handleld belt, battery
Dimension : 280*187*22mm
|
GPS
NFC Optional
1D/2D Barcode Scanner Optional
FingerPrint Scanner Optional |
|
| |
|
★
IMD-1012 |
10.1" Quad Core Tablet
4G LTE (Optional)
|
CPU : Intel Atom Cherry-Trail Z8350 Quad-core 1.44Ghz, Turbo 1.92GHz
OS : Win10 Pro
Display & Touch Screen : 10.1 inch Capacitive Multi-touch, 1920*1200 IPS
Cameras : Front 2.0MP, Rear 5.0MP
Memory & Storage : 4G RAM DDR + 64G ROM
Wireless Network : 802.11 a/b/g/n wireless (2.4G/5Ghz Dual-band wifi) and Bluetooth4.0
Battery : Built-in 3.7V/10000mAh Lithium Battery
I/O Ports : 1*RJ45 100M/1000M Ethernet Port,1*DB9 RS232 Serial port,
1*USB3.0 Host,1*USB2.0 Host,1*DC port,
1*TF Card Slot, 1*micro HDMI Port,
1*earphone jack, 1*Sim Card Slot (if add 4G Module)
Rugged Durability : Waterproof and dustproof rate:IP67;
Ruggedness : MIL-STD-810G.
4G : Optional
GPS : Support
NFC : Optional
2D Barcode Scanner : Built-in
Fingerprint scanner : Built-in Biometric Fingerprint Scanner
Dimension : 280*185*26.5mm |
GPS , NFC Optional
2D Barcode Scanner
FingerPrint Scanner
|
|
| |
|
|

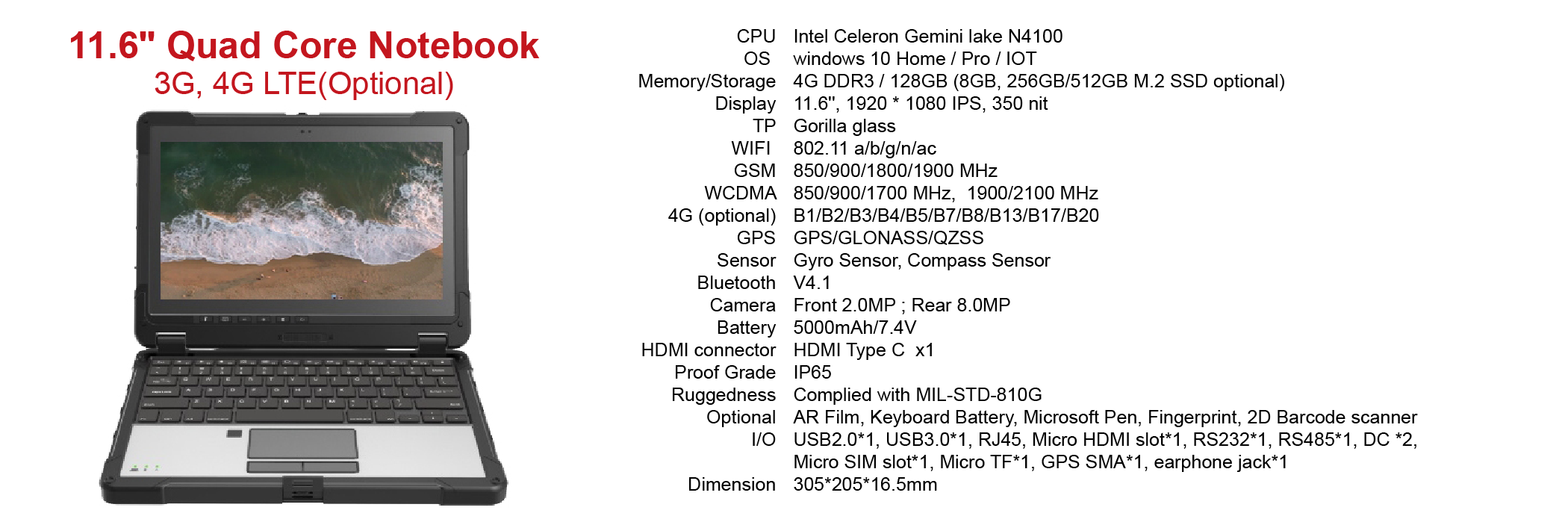

IMD - 1101
|
11.6" Quad Core Notebook
3G , 4G LTE (Optional)
|
CPU : Intel Celeron Gemini lake N4100
OS : windows 10 Home / Pro / IOT
Memory/Storage : 4G DDR3 / 128GB (8GB, 256GB/512GB M.2 SSD optional)
Display : 11.6'', 1920 * 1080 IPS, 350 nit
TP : Gorilla glass
WIFI : 802.11 a/b/g/n/ac
GSM : 850/900/1800/1900 MHz
WCDMA : 850/900/1700 MHz, 1900/2100 MHz
4G (optional) : B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
GPS : GPS/GLONASS/QZSS
Sensor : Gyro Sensor, Compass Sensor
Bluetooth : V4.1
Camera : Front 2.0MP ; Rear 8.0MP
Battery : 5000mAh/7.4V
HDMI connector : HDMI Type C x1
Proof Grade : IP65
Ruggedness : MIL-STD-810G
Optional : AR Film, Keyboard Battery, Microsoft Pen, Fingerprint, 2D Barcode scanner
I/O : USB2.0*1, USB3.0*1, RJ45, Micro HDMI slot*1, RS232*1, RS485*1, DC *2, Micro SIM slot*1, Micro TF*1, GPS SMA*1, earphone jack*1
Dimension : 305*205*16.5mm |
GPS/GLONASS/QZSS
MIL-STD-810G
|
|
| |
|
|

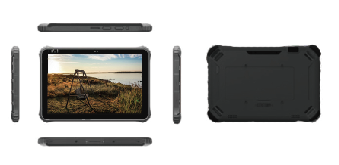

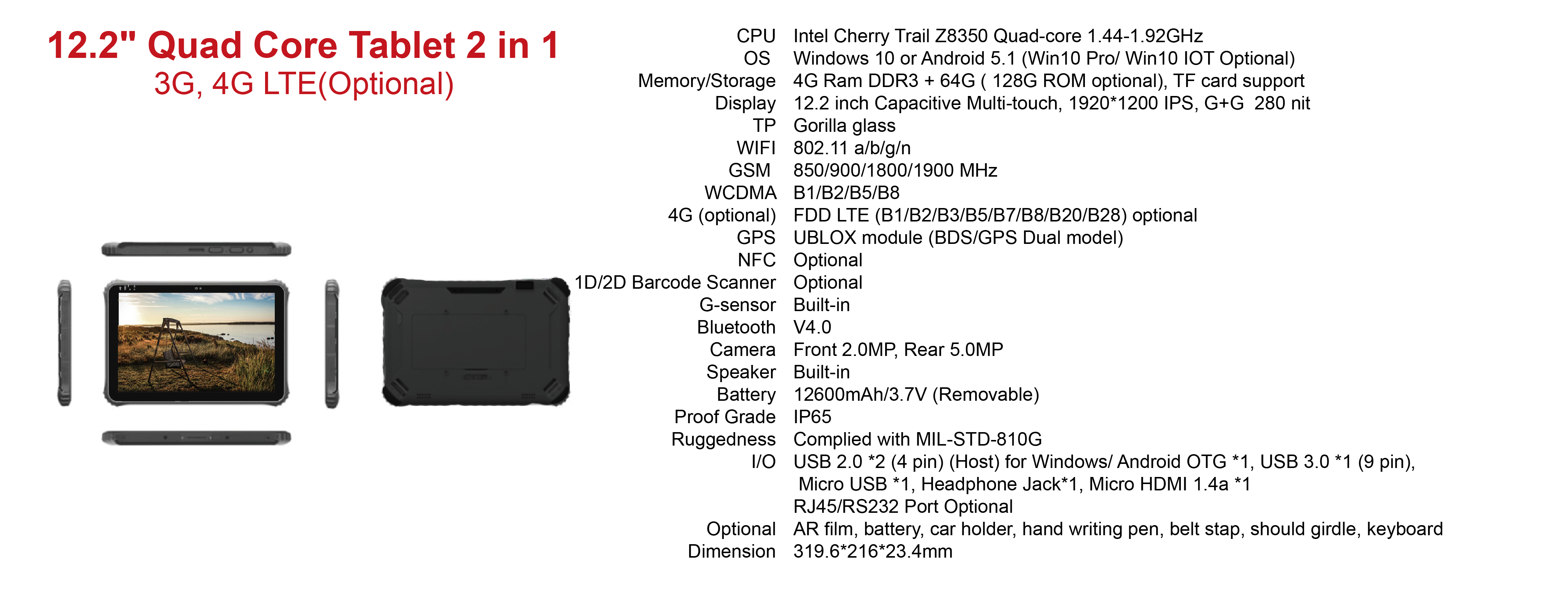

IMD - 1201
|
12.2" Quad Core Tablet 2 in 1
4G LTE (Optional)
|
CPU : Intel Cherry Trail Z8350 Quad-core 1.44-1.92GHz
OS : Windows 10 or Android 5.1 (Win10 Pro/ Win10 IOT Optional)
Memory/Storage : 4G Ram DDR3 + 64G ( 128G ROM optional), TF card support
Display : 12.2 inch Capacitive Multi-touch, 1920*1200 IPS, G+G 280 nit
TP : Gorilla glass
WIFI : 802.11 a/b/g/n
GSM : 850/900/1800/1900 MHz
WCDMA : B1/B2/B5/B8
4G (optional) : FDD LTE (B1/B2/B3/B5/B7/B8/B20/B28) optional
GPS : UBLOX module (BDS/GPS Dual model)
NFC : Optional
1D/2D Barcode Scanner : Optional
G-sensor : Built-in
Bluetooth : V4.0
Camera : Front 2.0MP, Rear 5.0MP
Speaker : Built-in
Battery : 12600mAh/3.7V (Removable)
Proof Grade : IP65
Ruggedness : MIL-STD-810G
I/O : USB 2.0 *2 (4 pin) (Host) for Windows/ Android OTG *1,
USB 3.0 *1 (9 pin), Micro USB *1, Headphone Jack*1,
Micro HDMI 1.4a *1RJ45/RS232 Port Optional
Optional : AR film, battery, car holder, hand writing pen, belt stap, should girdle, keyboard
Dimension : 319.6*216*23.4mm |
GPS/ BDS
NFC Optional
1D/2D Barcode Scanner Optional
Keyboard Optional
|
|
| |
|
|

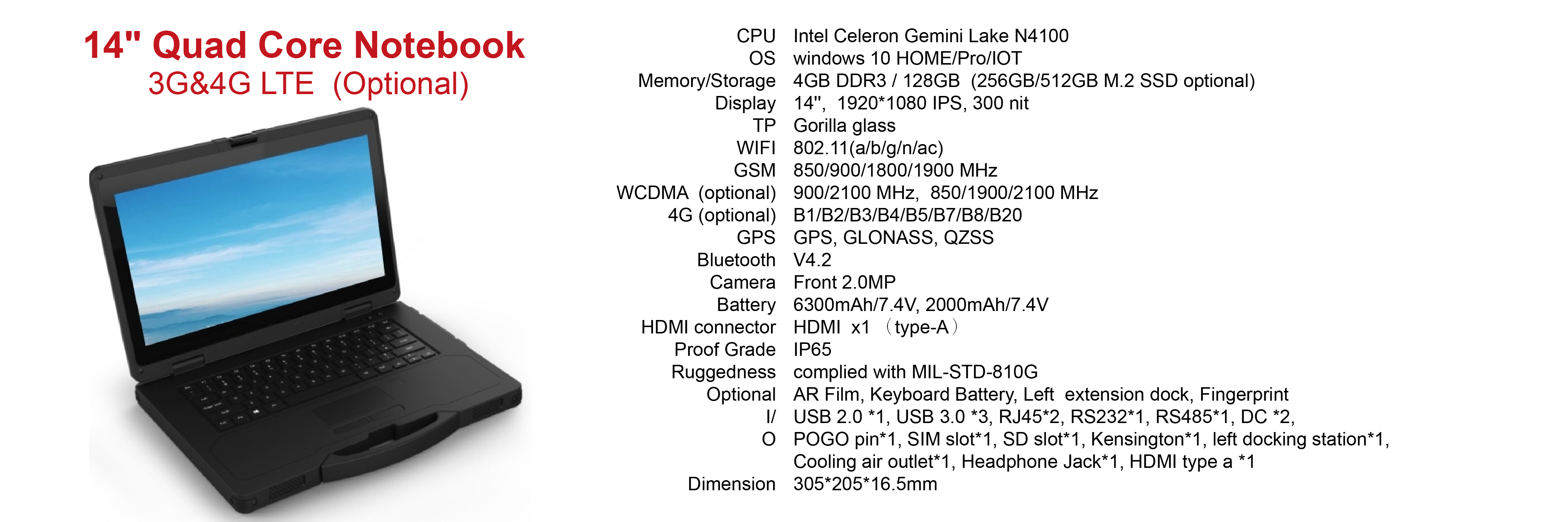

IMD - 1401
|
14" Quad Core Notebook
3G , 4G LTE (Optional)
|
CPU : Intel Celeron Gemini Lake N4100
OS : windows 10 HOME/Pro/IOT
Memory/Storage : 4GB DDR3 / 128GB (256GB/512GB M.2 SSD optional)
Display : 14'', 1920*1080 IPS, 300 nit
TP : Gorilla glass
WIFI : 802.11(a/b/g/n/ac)
GSM : 850/900/1800/1900 MHz
WCDMA (optional) : 900/2100 MHz, 850/1900/2100 MHz
4G (optional) : B1/B2/B3/B4/B5/B7/B8/B20
GPS : GPS, GLONASS, QZSS
Bluetooth : V4.2
Camera : Front 2.0MP
Battery : 6300mAh/7.4V, 2000mAh/7.4V
HDMI connector : HDMI x1 （type-A）
Proof Grade : IP65
Ruggedness : MIL-STD-810G
Optional : AR Film, Keyboard Battery, Left extension dock, Fingerprint
I/O : USB 2.0 *1, USB 3.0 *3, RJ45*2, RS232*1, RS485*1,
DC *2, POGO pin*1, SIM slot*1, SD slot*1, Kensington*1,
left docking station*1, Cooling air outlet*1, Headphone Jack*1, HDMI type a *1
Dimension : 305*205*16.5mm |
GPS/GLONASS/QZSS
MIL-STD-810G
|
|
