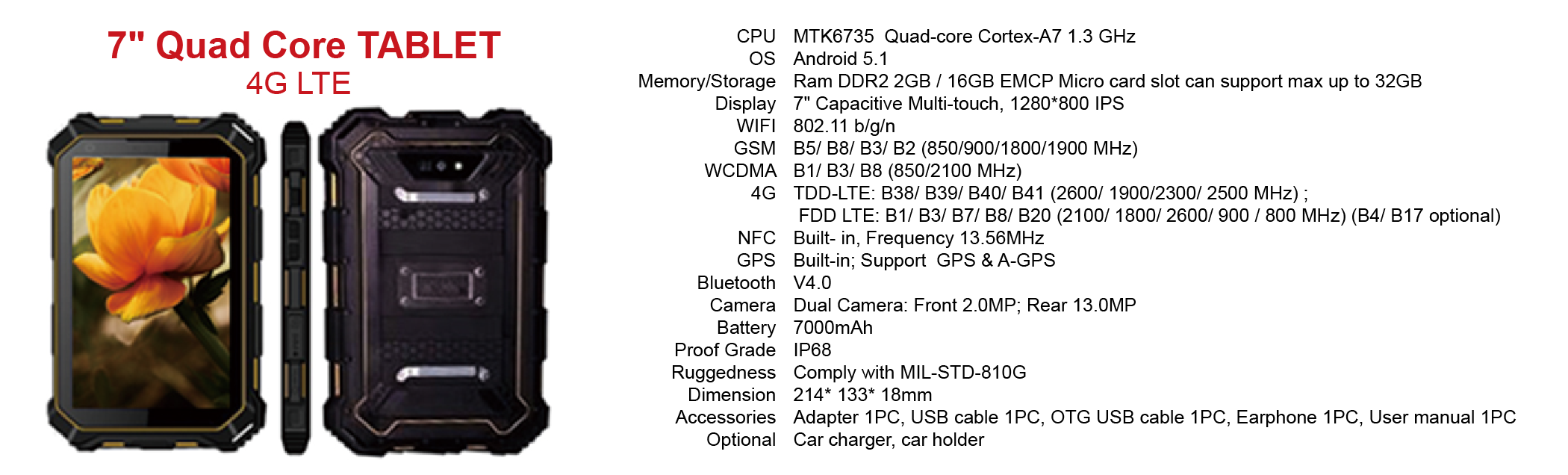

RUGGED ANDROID TABLET
|
|
IMD - 701
|
7" Quad Core Tablet
4G LTE
|
CPU : MTK6735 Quad-core Cortex-A53 1.3 GHz
OS : Android 5.1
Memory/Storage : Ram 2GB / Rom 16GB, Micro card slot can support max up to 32GB
Display : 7" Capacitive Multi-touch, 1280*800 IPS
WIFI : 802.11 b/g/n
GSM : B5/ B8/ B3/ B2 (850/900/1800/1900 MHz)
WCDMA : B1/ B3/ B8 (850/2100 MHz)
4G LTE : TDD-LTE: B38/ B39/ B40/ B41 (2600/ 1900/2300/ 2500 MHz) ;
FDD LTE: B1/ B3/ B7/ B8/ B20 (2100/ 1800/ 2600/ 900 / 800 MHz) (B4/ B17 optional)
NFC : Built- in, Frequency 13.56MHz
GPS : Built-in; Support GPS & A-GPS
Bluetooth : V4.0
Camera : Dual Camera: Front 2.0MP; Rear 13.0MP
Battery : 7000mAh
Proof Grade : IP68
Ruggedness : MIL-STD-810G
Dimensi Accessories : 214* 133* 18mm

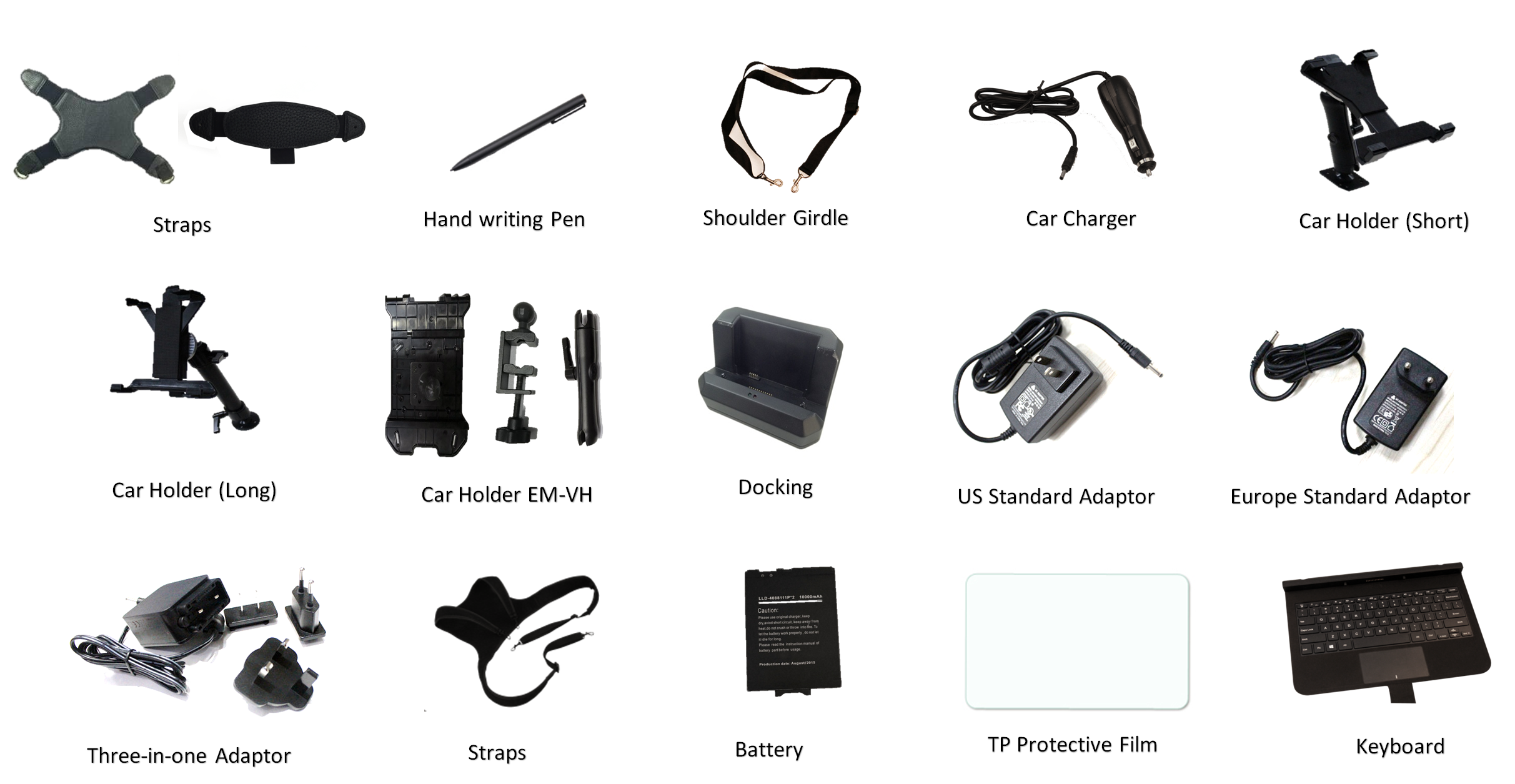

Optional : Adapter 1PC, USB cable 1PC, OTG USB cable 1PC, Earphone 1PC, User manual 1PC
Car charger, car holder |
GPS, AGPS
NFC
MIL-STD-810G |
|
| |
|
|
|

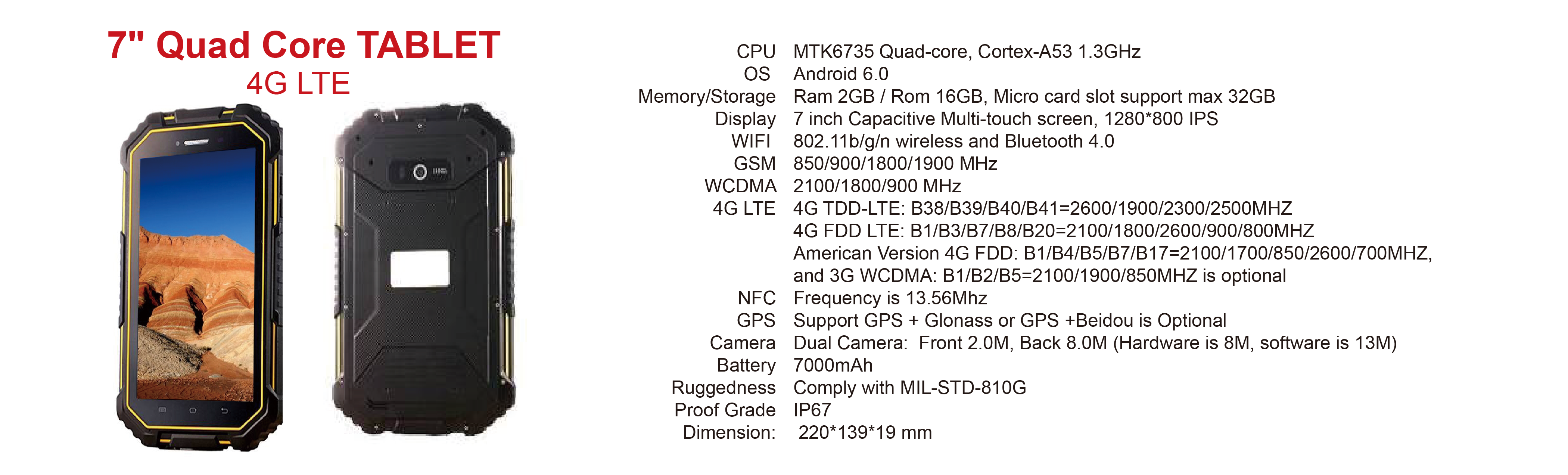

IMD - 702
|
7" Quad Core Table
4G LTE
|
CPU : MTK6735 Quad-core, Cortex-A53 1.3GHz
OS : Android 6.0
Memory/Storage : Ram 2GB / Rom 16GB, Micro card slot support max 32GB
Display : 7 inch Capacitive Multi-touch screen, 1280*800 IPS
WIFI : 802.11b/g/n wireless and Bluetooth 4.0
GSM : 850/900/1800/1900 MHz
WCDMA : 2100/1800/900 MHz
4G LTE : 4G TDD-LTE: B38/B39/B40/B41=2600/1900/2300/2500MHZ
4G FDD LTE: B1/B3/B7/B8/B20=2100/1800/2600/900/800MHZ
American Version 4G FDD: B1/B4/B5/B7/B17=2100/1700/850/2600/700MHZ,
3G WCDMA : B1/B2/B5=2100/1900/850MHZ is optional
NFC : Frequency is 13.56Mhz
GPS : Support GPS + Glonass or GPS +Beidou is Optional
Camera : Dual Camera: Front 2.0M, Back 8.0M (Hardware is 8M, software is 13M)
Battery : 7000mAh
Ruggedness : MIL-STD-810G
Proof Grade : IP67
Dimension : 220*139*19 mm |
|
|
| |
|
|
IMD - 704 |
7" Octa Core Table
4G LTE |
CPU: MTK6762 Octa core, 2.0 GHz
OS: Android 9.0
Display: 7 inch Capacitive Multi-touch, 1920*1200 IPS
4G Networks: Support GSM: B5/B8/B3/B2=850/900/1800/1900 MHz,
3G WCDMA: B1/B3/B8=2100/1800/900 MHz,
4G TDD-LTE: B38/B39/B40/B41=2600/1900/2300/2500 MHz,
4G FDD-LTE: B1/B3/B5/B7/B8/B17/B20/B66/B71/B28AB
Cameras: Front 2.0 MP, Back 13.0 MP
Memory & Storage: RAM 4G + ROM 64G
WIFI: 802.11 a/b/g/n dual wifi and Bluetooth 5.0
GPS: Support GPS + Glonass + Beidou
Battery: 8000 mAh
Standard Accessories: 1*charger, 1*USB cable, 1* color box
Support Sensors: G-sensor, light-sensor, gyroscope, compass
Proof Grade: IP67
Ruggedness: MIL-STD-810G
NFC: Frequency 13.56 MHz
I/O: 1*5-pin micro USB OTG, 1*Earphone jack, 1*Sim card slot
Dimension: 216*136*19 mm
Weight: 560g
Color: Yellow + Black |
4G , IP67 ,NFC
MIL-STD-810G |
|
|
| |
|
|
IMD - 801 |
8" Quad Core Tablet
3G |
CPU : Intel Atom Bay-Trail Z3735F Quad-core 1.33-1.83GHz
OS : Windows 10 Home or Android 4.4
Memory/Storage : 2G Ram + 32G
Display : 8 inch Capacitive Multi-touch, 1280*800 IPS
WIFI : 802.11b/g/n/ac wireless (2.4G/5G dual band)
WCDMA : 900/2100 MHZ
GPS : Support
NFC : 13.56 Mhz Optional
1D/2D barcode scanner : optional
Stylus : optional
AR Film : optional
Bluetooth : V4.0
Camera : Front 2.0MP, Rear 5.0MP
Battery : 8500mAh Lithium Battery
Proof Grade : IP67
Ruggedness : Comply with MIL-STD-810G
Dimension : 228* 145* 16.5 mm
Docking Station : 1* RJ45 Ethernet port, 3* USB 2.0, Optional
I/O : 1*Micro USB, 1*USB2.0 Host, 1*TF Card Slot, 1* micro HDMI,
1*earphone jack, 1*Sim Card Slot, 1* DC |
GPS
NFC Optional
1D/2D Barcode Scanner Optional
MIL-STD-810G |
|
| |
|
|
★

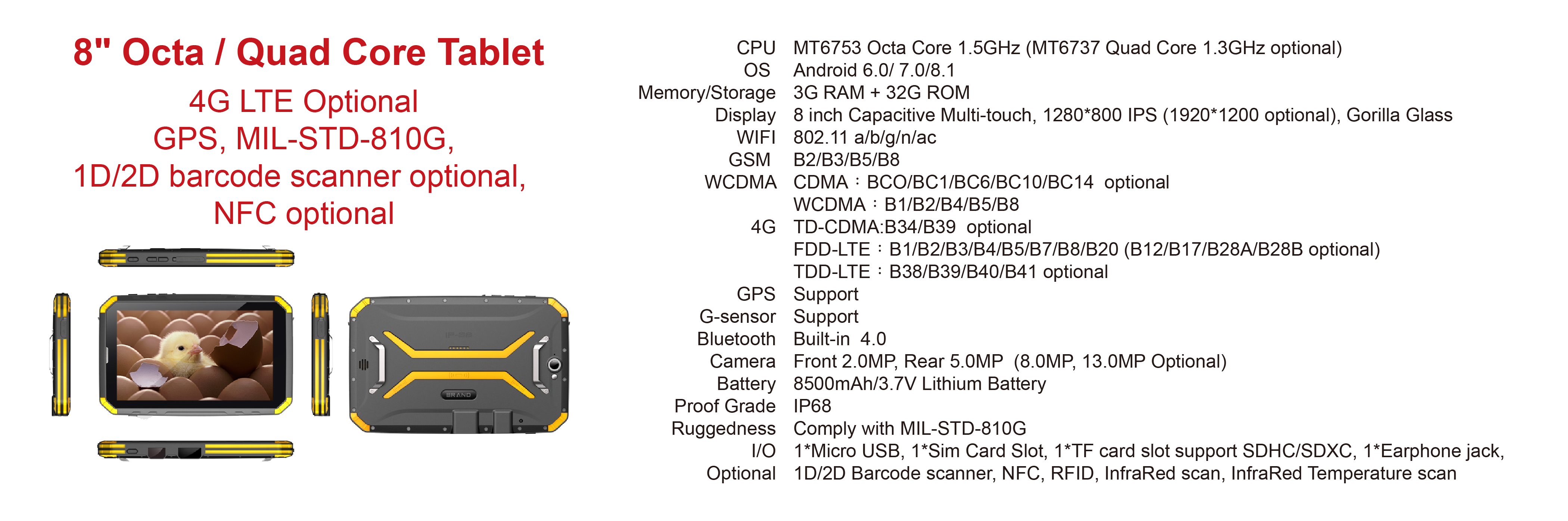

IMD - 802B
|
8" Octa / Quad Core Tablet
4G LTE
|
CPU : MT6753 Octa Core 1.5GHz (MT6737 Quad Core 1.3GHz optional)
OS : Android 6.0/ 7.0/8.1
Memory/Storage : 3G RAM + 32G ROM
Display : 8 inch Capacitive Multi-touch, 1280*800 IPS (1920*1200 optional), Gorilla Glass
WIFI : 802.11 a/b/g/n/ac
GSM : B2/B3/B5/B8
WCDMA : CDMA：BCO/BC1/BC6/BC10/BC14 optional
WCDMA ： B1/B2/B4/B5/B8
4G : TD-CDMA:B34/B39 optional
FDD-LTE ： B1/B2/B3/B4/B5/B7/B8/B20 (B12/B17/B28A/B28B optional)
TDD-LTE ： B38/B39/B40/B41 optional
GPS : Support
G-sensor : Support
Bluetooth : Built-in 4.0
Camera : Front 2.0MP, Rear 5.0MP (8.0MP, 13.0MP Optional)
Battery : 8500mAh/3.7V Lithium Battery
Proof Grade : IP68
Ruggedness : MIL-STD-810G
I/O : 1*Micro USB, 1*Sim Card Slot, 1*TF card slot support SDHC/SDXC, 1*Earphone jack,
Optional : 1D/2D Barcode scanner, NFC, RFID, Infrared scan, Infrared Temperature scan |
MIL-STD-810G
GPS
NFC Optional
1D/2D Barcode Scanner Optional |
|
| |
|
|
IMD - 803 |
8" Quad Core Tablet
4G LTE |
CPU : Intel Cherry Trail Z8350 1.44 Ghz - 1.92 GHz
OS : Android 5.1 / Windows 10 home / Windows Pro
Memory/Storage : 4GB DDR3L + 64GB (2GB, 32GB, 128GB optional)
Display : 8" 5 point touch screen, 1280x800 IPS, 320 nit
TP : Gorilla glass
WIFI : 802.11 a/b/g/n
GSM : 850/900/1800/1900 MHz
WCDMA : B1/B2/B5/B8
4G LTE : FDD LTE: B1/B2/B3/B4/B5/B7/B8/B20
GPS : Support
Bluetooth : 4.0
Camera : Front 2.0MP, Rear 5.0 MP
Battery : 3.7V/8500mAH (3G), 3.7V/7800mAH (4G LTE)
Proof Grade : IP67
Ruggedness : comply with MIL-STD-810G
Optional : NFC, AR Film, 1D/2D barcode scanner,TP protective film,
hand writing pen, car charger, car holder, Docking
I/O : USB2.0*1, TF Slot*1, OTG*1, HDMI 1.4a*1,
Micro SIM slot*1, 12pin POGO pin*1, DC * 1, earphone jack*1
Dimension : 225*143*19mm |
GPS
NFC Optional
1D/2D Barcode Scanner Optional
MIL-STD-810G |
|
| |
|
|
★

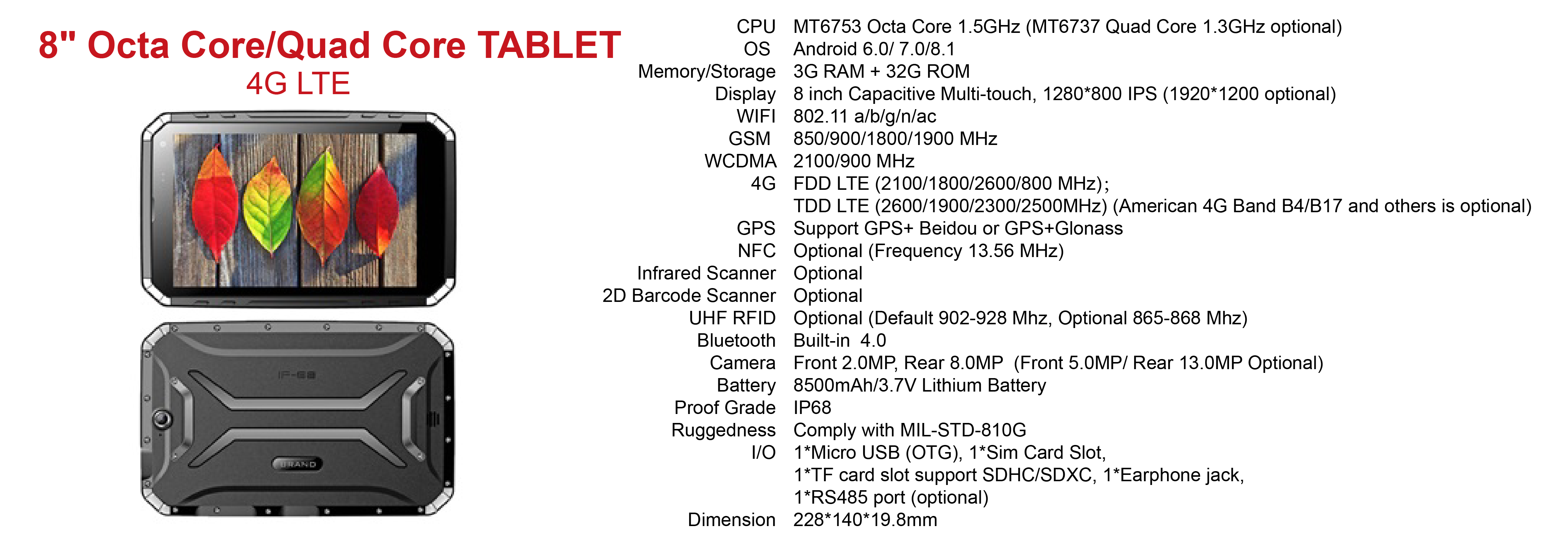

IMD - 805A
|
8" Octa Core/Quad Core Tablet
4G LTE
|
CPU : MT6753 Octa Core 1.5GHz (MT6737 Quad Core 1.3GHz optional)
OS : Android 6.0/ 7.0/8.1
Memory/Storage : 3G RAM + 32G ROM
Display : 8 inch Capacitive Multi-touch, 1280*800 IPS (1920*1200 optional)
WIFI : 802.11 a/b/g/n/ac
GSM : 850/900/1800/1900 MHz
WCDMA : 2100/900 MHz
4G : FDD LTE (2100/1800/2600/800 MHz)；
TDD LTE (2600/1900/2300/2500MHz) (American 4G Band B4/B17 and others is optional)
GPS : Support GPS+ Beidou or GPS+Glonass
NFC : Optional (Frequency 13.56 MHz)
Infrared Scanner : Optional
2D Barcode Scanner : Optional
UHF RFID : Optional (Default 902-928 Mhz, Optional 865-868 Mhz)
Bluetooth : Built-in 4.0
Camera : Front 2.0MP, Rear 8.0MP (Front 5.0MP/ Rear 13.0MP Optional)
Battery : 8500mAh/3.7V Lithium Battery
Proof Grade : IP68
Ruggedness : MIL-STD-810G
I/O : 1*Micro USB (OTG), 1*Sim Card Slot,
1*TF card slot support SDHC/SDXC, 1*Earphone jack,
1*RS485 port (optional)
Dimension : 228*140*19.8mm |
GPS+Beidou or GPS+Glonass
NFC Optional
Infrared Scanner Optional
2D Barcode Scanner Optional
UHF RFID Optional |
|
| |
|
|
|

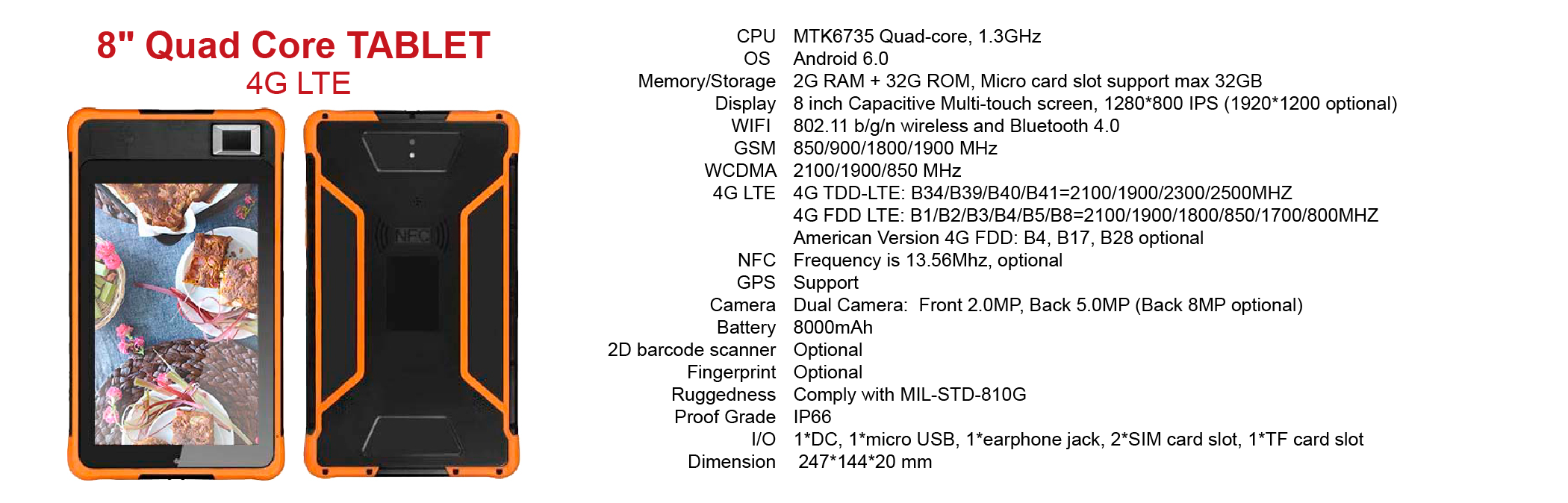

IMD - 806
|
8" Quad Core Tablet
4G LTE
|
CPU : MTK6735 Quad-core, 1.3GHz
OS : Android 6.0
Memory/Storage : 2G RAM + 32G ROM, Micro card slot support max 32GB
Display : 8 inch Capacitive Multi-touch screen, 1280*800 IPS (1920*1200 optional)
WIFI : 802.11 b/g/n wireless and Bluetooth 4.0
GSM : 850/900/1800/1900 MHz
WCDMA : 2100/1900/850 MHz
4G LTE : 4G TDD-LTE: B34/B39/B40/B41=2100/1900/2300/2500MHZ
4G FDD LTE: B1/B2/B3/B4/B5/B8=2100/1900/1800/850/1700/800MHZ
American Version 4G FDD : B4, B17, B28 optional
NFC : Frequency is 13.56Mhz, optional
GPS : Support
Camera : Dual Camera: Front 2.0MP, Back 5.0MP (Back 8MP optional)
Battery : 8000mAh
2D barcode scanner : Optional
Fingerprint : Optional
Ruggedness : MIL-STD-810G
Proof Grade : IP66
I/O : 1*DC, 1*micro USB, 1*earphone jack, 2*SIM card slot, 1*TF card slot
Dimension : 247*144*20 mm |
GPS, NFC
Fingerprint
Barcode scanner
MIL-STD-810G |
|
| |
|
|
★
IMD - 808 |
8" Octa Core Tablet
4G LTE
|
CPU : MTK6753 Octa-core 1.5GHz
OS : Android 8.1,without Google GMS certificate
Display : 8 inch Capacitive Multi-touch,Gorilla glass,
1280*800 IPS,brightness 500nits,normal sunlight readable
4G : support 2G GSM:B8/B3=900/1800MHZ, 3G: WCDMA: B1/B8=2100/900MHZ，
TD-SWCDMA : B34/B39= B34/B39=2010-2025/1880-1920Mhz, CDMA2000(BC0): 800MHz;
4G TDD LTE : B38/B39/B40/B41=2600/1900/2300/2500MHZ;
FDD LTE ： B1/B3/B8=2100/1800/900MHZ
Cameras : Front 2.0MP , Rear 8.0MP
Memory & Storage : 2G RAM + 32G ROM
WIFI : 802.11 a/b/g/n 2.4G+5Ghz dual-band wifi and blutooth4.0
GPS / Glonass : Support
Battery : Built-in 3.7V/ 10000mAh Lithium Battery
Proof Grade : IP68
Ruggedness : MIL-STD-810G
NFC : Frequency 13.56Mhz, optional
Dimention : 243*158*23mm, Net Weight: 739g |
MIL-STD-810G
GPS / Glonass
NFC Optional |
|
| |
|
|
IMD - 808A |
8" Octa Core Tablet
4G LTE |
CPU: MTK6753 Octa-core 1.5 GHz
OS: Android 8.1, without GMS approval, but with playstore and other google service
Display: 8 inch Capacitive Multi-touch, Gorilla glass, 1920*1200 IPS, normal sunlight readable
4G Networks: Support GSM: B8/B3=900/1800MHz,
3G WCDMA: B1/B8=2100/900MHz,
4G TDD LTE: B38/B39/B40/B41=2600/1900/2300/2500MHz,
4G FDD LTE: B1/B3/B8=2100/1800/900MHz
Cameras: Front 2.0 MP, Rear 8.0 MP
Memory & Storage: RAM 2G + ROM 32G
WIFI: 802.11 a/b/g/n 2.4G+5.0G dual-band wifi and bluetooth 4.0
GPS / Glonass: support
Battery: 10000 mAh/3.7V
Proof Grade: IP67
Ruggedness: MIL-STD-810G
NFC: Optional
I/O: 1* micro USB port (support OTG), 1*Earphone jack, 2*Sim card slot
Dimension: 243*158*23 mm
Weight: 739g |
|
|
| |
|
|
IMD - 808B |
8" Octa Core Tablet
4G LTE |
CPU: MTK6762 Octa-core 2.0 GHz
OS: Android 9.0, without GMS approval, but with playstore and other google service
Display: 8 inch Capacitive Multi-touch, Gorilla glass, 1920*1200 IPS, normal sunlight readable
4G Networks: Support GSM: B5/B8/B3=850/900/1800 MHz,
3G WCDMA: B1/B5/B8=2100/850/900 MHz,
4G TDD LTE: B39/B40/BC0=1900/2300/800 MHz,
4G FDD LTE：B1/B3/B5/B8=2100/1800/850/900 MHz
Cameras: Front 5.0 MP, Rear 13.0 MP
Memory & Storage: RAM 4GB + ROM 64GB
WIFI: 802.11 a/b/g/n 2.4G+5.0G dual-band wifi and bluetooth 5.0
GPS / Glonass: support
Battery: 10000 mAh/3.7V
Proof Grade: IP68
Ruggedness: MIL-STD-810G
NFC: Optional
I/O: 1* type C port (support OTG), 1*Earphone jack, 2*Sim card slot
Dimension: 243*158*23 mm
Weight: 739g |
GPS, IP68,
MIL-STD-810G,
Bluetooth 5.0 |
|
|
| |
|
|
★
IMD - 809 |
8" Deca Core Tablet
4G LTE |
CPU : MTK6797 Deca (10)-core 2.1-2.3GHz
OS : Android 8.1
Display : 8 inch Capacitive Multi-touch,Gorilla glass,
1280*800 IPS (1920*1200 IPS optional),
brightness 500cd/m2,normal sunlight readable
4G : support 2G GSM:B8/B3=900/1800MHZ, 3G: WCDMA: B1/B8=2100/900MHZ，
TD-SWCDMA : B34/B39= B34/B39=2010-2025/1880-1920Mhz, CDMA2000(BC0): 800MHz;
4G TDD LTE : B38/B39/B40/B41=2600/1900/2300/2500MHZ;
FDD LTE ： B1/B3/B8=2100/1800/900MHZ
Cameras : Front 2.0MP , Rear 8.0MP
Memory & Storage : 4G RAM + 64G ROM
WIFI : 802.11 a/b/g/n 2.4G+5Ghz dual-band wifi and blutooth4.0
GPS / Glonass : Support
Battery : Built-in 3.7V/ 10000mAh Lithium Battery
Proof Grade : IP68
Ruggedness : MIL-STD-810G
NFC : Frequency 13.56Mhz,optional
Dimention : 243*158*23mm, Net Weight: 739g |
MIL-STD-810G
GPS / Glonass
NFC Optional |
|
| |
|
|
★

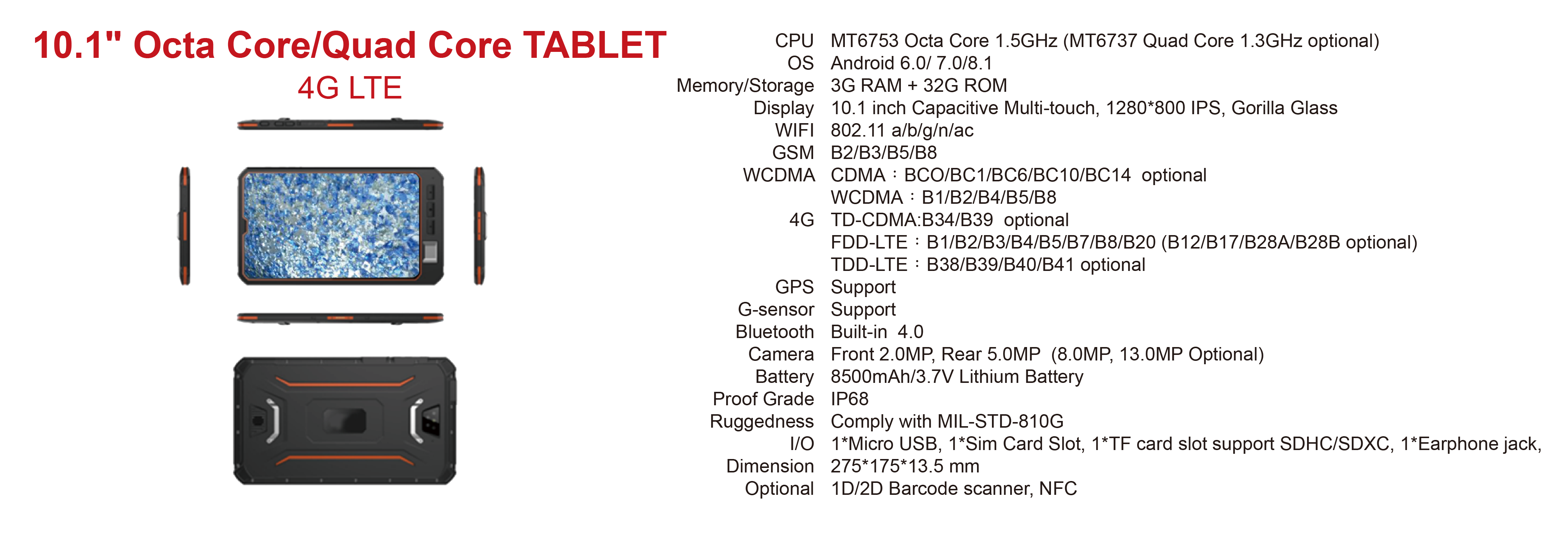

IMD - 1001A
|
10.1" Octa Core/Quad Core Tablet
4G LTE
|
CPU : MT6753 Octa Core 1.5GHz (MT6737 Quad Core 1.3GHz optional)
OS : Android 6.0/ 7.0/8.1
Memory/Storage : 3G RAM + 32G ROM
Display : 10.1 inch Capacitive Multi-touch, 1280*800 IPS, Gorilla Glass
WIFI : 802.11 a/b/g/n/ac
GSM : B2/B3/B5/B8
WCDMA : CDMA：BCO/BC1/BC6/BC10/BC14 optional
WCDMA ： B1/B2/B4/B5/B8
4G : TD-CDMA:B34/B39 optional
FDD-LTE ： B1/B2/B3/B4/B5/B7/B8/B20 (B12/B17/B28A/B28B optional)
TDD-LTE ： B38/B39/B40/B41 optional
GPS : Support
G-sensor : Support
Bluetooth : 4.0
Camera : Front 2.0MP, Rear 5.0MP (8.0MP / 13.0MP Optional)
Battery : 8500mAh/3.7V
Proof Grade : IP68
Ruggedness : MIL-STD-810G
I/O : 1*Micro USB, 1*Sim Card Slot, 1*TF card slot support SDHC/SDXC, 1*Earphone jack
Dimension : 275*175*13.5 mm
Optional : 1D/2D Barcode scanner, NFC |
|
|
| |
|
|
|

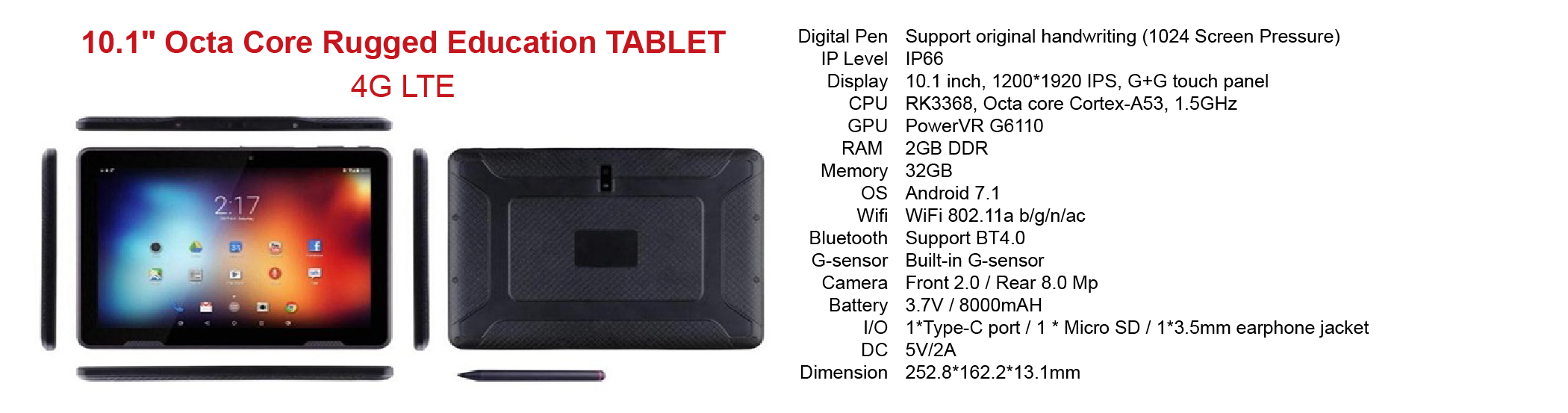

IMD - 1007
|
10.1" Octa core Rugged Education tablet |
Digital Pen : Support original handwriting (1024 Screen Pressure)
IP Level : IP66
Display : 10.1 inch, 1200*1920 IPS, G+G touch panel
CPU : RK3368, Octa core Cortex-A53, 1.5GHz
GPU : PowerVR G6110
RAM : 2GB DDR
Memory : 32GB
OS : Android 7.1
Wifi : WiFi 802.11a b/g/n/ac
Bluetooth : Support BT4.0
G-sensor : Built-in G-sensor
Camera : Front 2.0 / Rear 8.0 Mp
Battery : 3.7V / 8000mAH
I/O : 1*Type-C port / 1 * Micro SD / 1*3.5mm earphone jacket
DC : 5V/2A
Dimension : 252.8*162.2*13.1mm |
|
|
| |
|
|
|

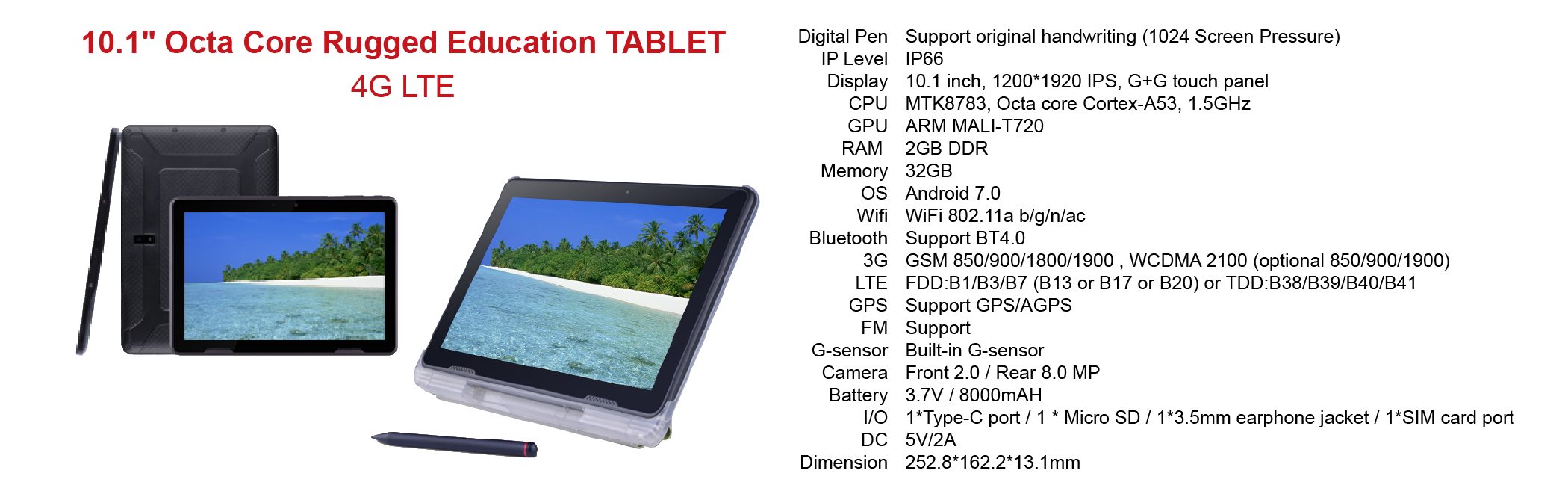

IMD - 1008
|
10.1" Octa core Rugged Education tablet
4G LTE
|
Digital Pen : Support original handwriting (1024 Screen Pressure)
IP Level : IP66
Display : 10.1 inch, 1200*1920 IPS, G+G touch panel
CPU : MTK8783, Octa core Cortex-A53, 1.5GHz
GPU : ARM MALI-T720
RAM : 2GB DDR
Memory : 32GB
OS : Android 7.0
Wifi : WiFi 802.11a b/g/n/ac
Bluetooth : Support BT4.0
3G : GSM 850/900/1800/1900 , WCDMA 2100 (optional 850/900/1900)
LTE : FDD:B1/B3/B7 (B13 or B17 or B20) or TDD:B38/B39/B40/B41
GPS : Support GPS/AGPS
FM : Support
G-sensor : Built-in G-sensor
Camera : Front 2.0 / Rear 8.0 MP
Battery : 3.7V / 8000mAH
I/O : 1*Type-C port / 1 * Micro SD / 1*3.5mm earphone jacket / 1*SIM card port
DC : 5V/2A
Dimension : 252.8*162.2*13.1mm |
|
|
| |
|
|
★

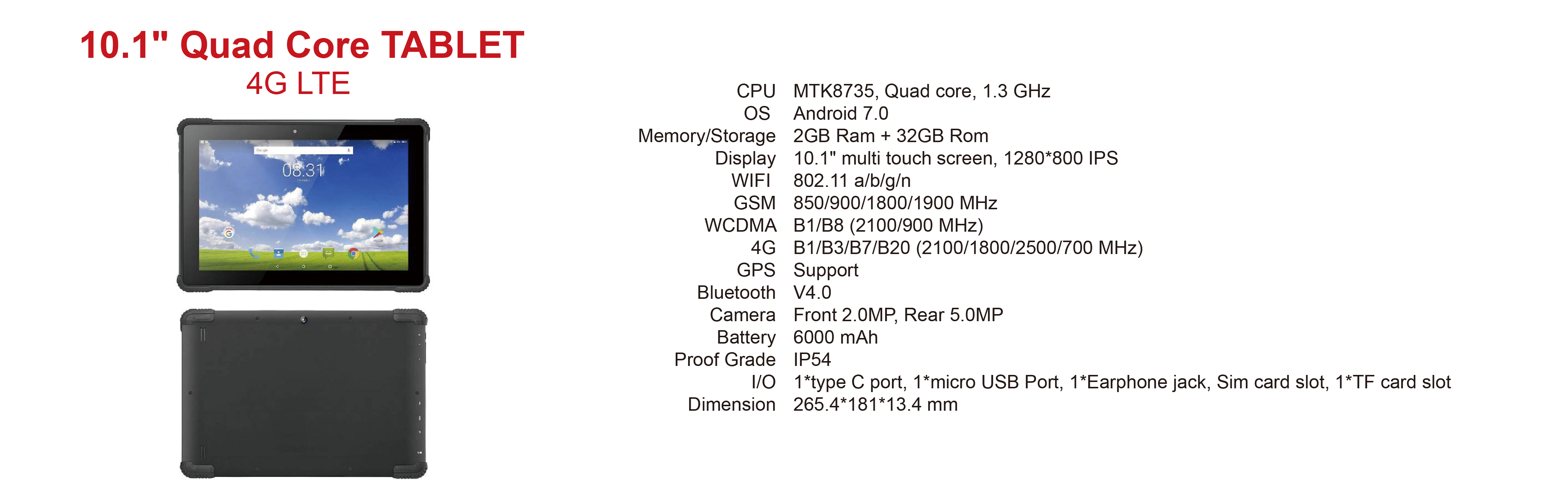

IMD - 1010
|
10.1" Quad Core Tablet
4G LTE
|
CPU : MTK8735, Quad core, 1.3 GHz
OS : Android 7.0
Memory/Storage : 2GB Ram + 32GB Rom
Display : 10.1" multi touch screen, 1280*800 IPS
WIFI : 802.11 a/b/g/n
GSM : 850/900/1800/1900 MHz
WCDMA : B1/B8 (2100/900 MHz)
4G : B1/B3/B7/B20 (2100/1800/2500/700 MHz)
GPS : Support
Bluetooth : V4.0
Camera : Front 2.0MP, Rear 5.0MP
Battery : 6000 mAh
Proof Grade : IP54
I/O : 1*type C port, 1*micro USB Port, 1*Earphone jack, Sim card slot, 1*TF card slot
Dimension : 265.4*181*13.4 mm |
|
|
| |
|
|
★

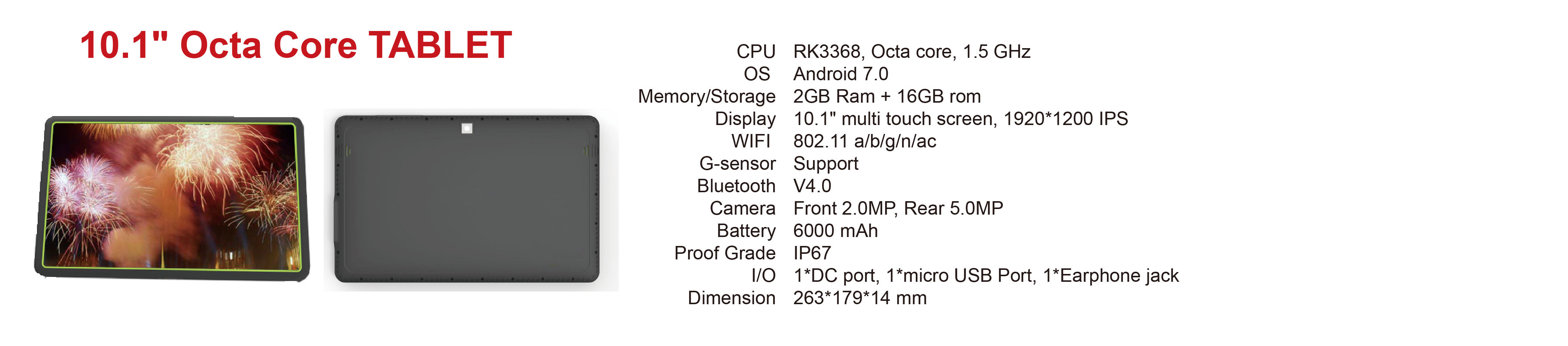

IMD - 1011
|
10.1" Octa Core Tablet
|
CPU : RK3368, Octa core, 1.5 GHz
OS : Android 7.0
Memory/Storage : 2GB Ram + 16GB rom
Display : 10.1" multi touch screen, 1920*1200 IPS
WIFI : 802.11 a/b/g/n/ac
G-sensor : Support
Bluetooth : V4.0
Camera : Front 2.0MP, Rear 5.0MP
Battery : 6000 mAh
Proof Grade : IP67
I/O : 1*DC port, 1*micro USB Port, 1*Earphone jack
Dimension : 263*179*14 mm |
|
|
| |
IMD - 1201 |
12.2" Quad Core Tablet 2 in 1
4G LTE (Optional) |
CPU : Intel Cherry Trail Z8350 Quad-core 1.44-1.92GHz
OS : Windows 10 or Android 5.1 (Win10 Pro/ Win10 IOT Optional)
Memory/Storage : 4G Ram DDR3 + 64G ( 128G ROM optional), TF card support
Display : 12.2 inch Capacitive Multi-touch, 1920*1200 IPS, G+G 280 nit
TP : Gorilla glass
WIFI : 802.11 a/b/g/n
GSM : 850/900/1800/1900 MHz
WCDMA : B1/B2/B5/B8
4G (optional) : FDD LTE (B1/B2/B3/B5/B7/B8/B20/B28) optional
GPS : UBLOX module (BDS/GPS Dual model)
NFC : Optional
1D/2D Barcode Scanner : Optional
G-sensor : Built-in
Bluetooth : V4.0
Camera : Front 2.0MP, Rear 5.0MP
Speaker : Built-in
Battery : 12600mAh/3.7V (Removable)
Proof Grade : IP65
Ruggedness : MIL-STD-810G
I/O : USB 2.0 *2 (4 pin) (Host) for Windows/ Android OTG *1,
USB 3.0 *1 (9 pin), Micro USB *1, Headphone Jack*1,
Micro HDMI 1.4a *1RJ45/RS232 Port Optional
Optional : AR film, battery, car holder, hand writing pen, belt stap, should girdle, keyboard
Dimension : 319.6*216*23.4mm |
GPS/ BDS
NFC Optional
1D/2D Barcode Scanner Optional
Keyboard Optional |
|
| |
Optional Accessories
|
|
|
